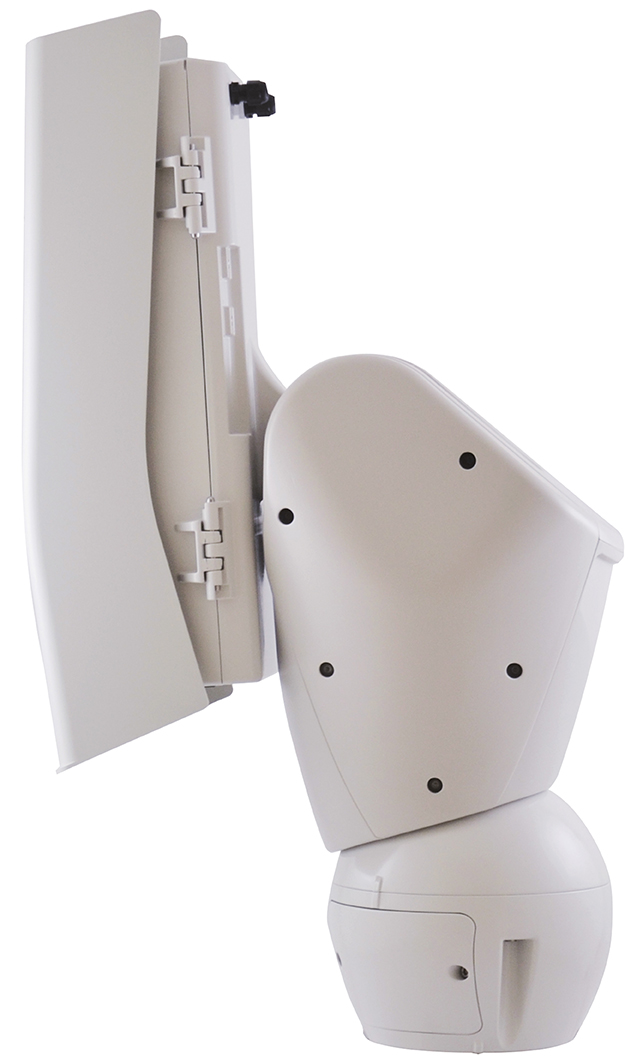

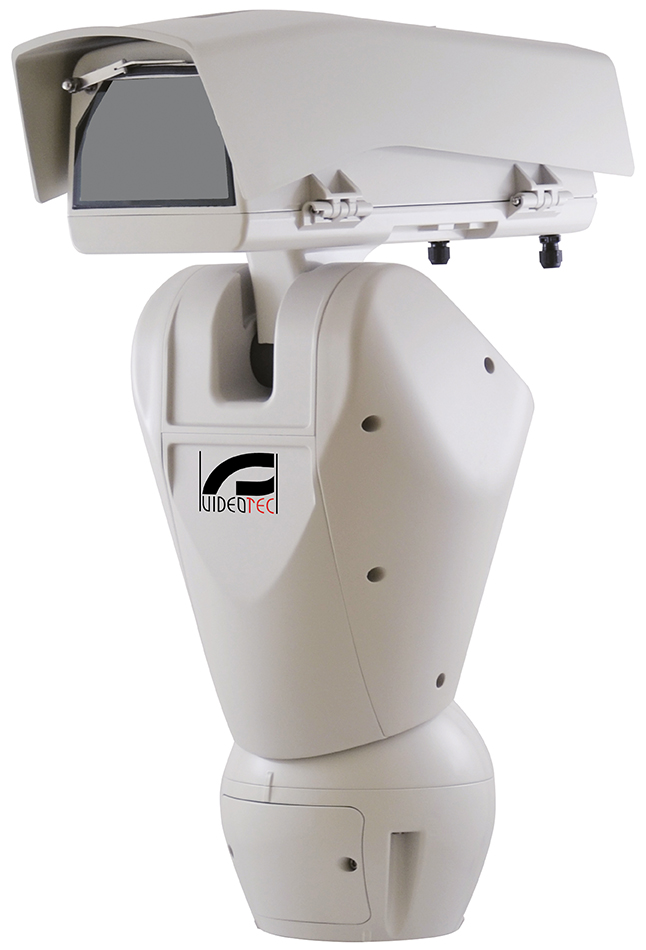

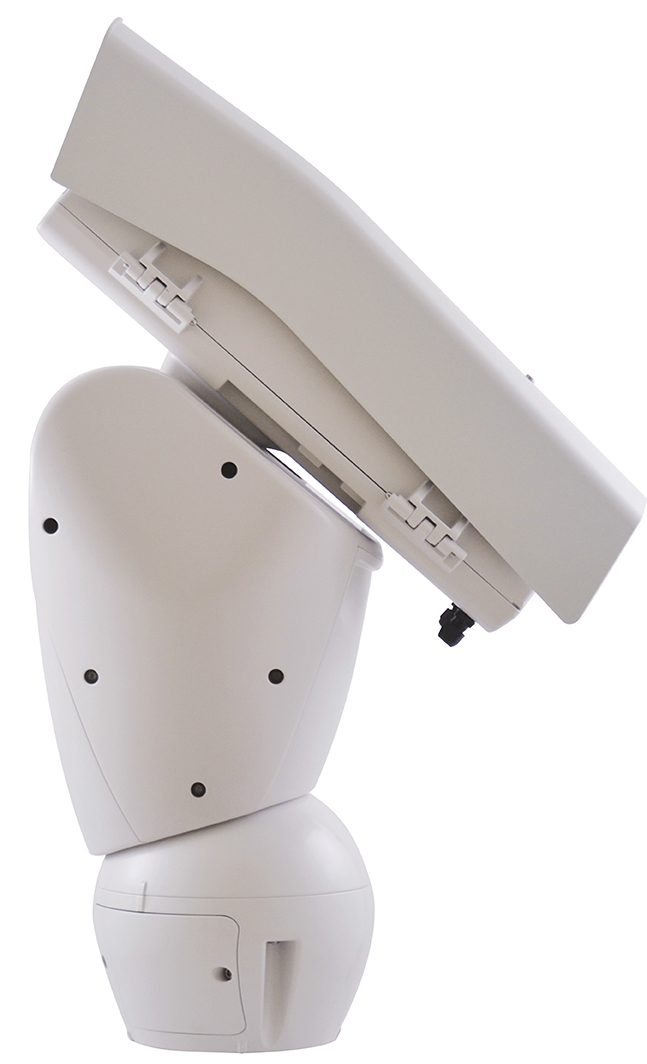

VideoTec - UPTB1STA00A - ULISSE2 PTZ unit for IP thermal cameras, 230Vac, germanium front window Ø61mm
Part number:
UPTB1STA00A
Price:
ULISSE2 is an outdoor full IP PTZ unit for control and management of all third-party IP cameras and thermal imaging cameras (ONVIF-S or those equipped with an RS485 serial port), with direct access via a browser to the camera's interface for setup and diagnostics.
Thanks to ONVIF-S protocols, the Full IP connectivity of the ULISSE2 allows you to network-control P&T plus all camera functions, including the wiper, washer pump, pre-sets, illuminator activation and setup, using the most popular VMS' on the market.
The advanced protection technology used has allowed certain characteristics of the new PTZ to be enhanced, such as the temperature range of -40°C (-40°F) to +65°C (+149°F). The unit can be demisted with forced air and the temperature is constantly controlled, thus preventing condensation and guaranteeing an ideal operating temperature range for the camera.

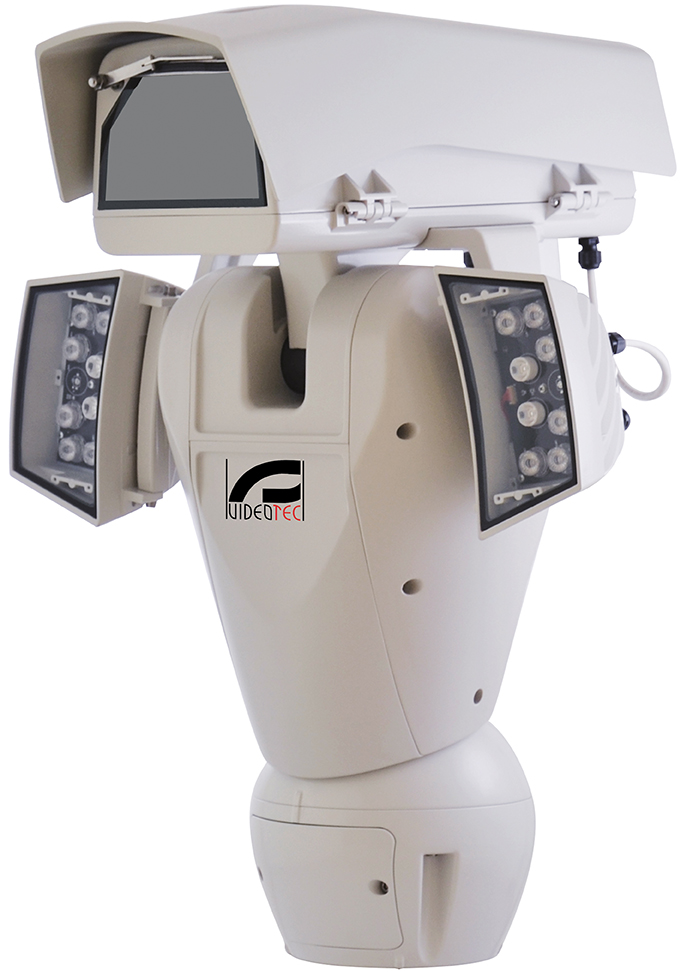

The LED illuminators are easily integrated onto the P&T, even post-installation, without the need for additional power sources and independently of the unit’s power supply. The second illuminator can be turned on at certain zoom parameters, pre-set positions or manually to avoid spotlighting a near-by subject or to control a floodlight.
Improved accessibility to connections allows you to carry out wiring and diagnostics quickly and easily, without dismantling the product. ULISSE2 can be completely assembled using a single hex key (supplied)
Features:
- Full IP PTZ unit for complete management and control of IP ONVIF-S cameras
- 60 Mbit/s video stream for 4K cameras
- Direct access to third-party cameras via a browser, for setup and diagnostics as a single IP address
- Tested and certified from -40°C to +65°C (-40°F to +149°F), IP66 and NEMA TYPE 4X
- Sophisticated temperature control and demisting system
| GENERAL |
| Installation made easier with a single hex key and captive screws |
| Top mount |
| Extremely smooth movement |
| Transmission through toothed belt with zero backlash |
| Reading via ONVIF of the pan/tilt/zoom position |
| Slip-ring |
| Electronic limit switches |
| Integrated wiper |
| Optional illuminators. The second illuminator can be turned on at certain zoom parameters, pre-set positions or manually |
| Micro SD slot for configuration and log storage |
| Housing equipped with forced-air ventilation |
| Zero compensation on mechanical horizontal axis (pan offset) |
| User configurable electronically limits for vertical and horizontal axis |
| MECHANICAL |
| Constructed from aluminium and tecnopolymer |
| Epoxypolyester powder painting, RAL9002 colour |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -40° up to +90° |
| Horizontal speed (variable): from 0.02°/s up to 100°/s (from 0.02°/s up to 50°/s with illuminators) |
| Tilt speed (variable): from 0.02°/s up to 50°/s (from 0.02°/s up to 50°/s with illuminators) |
| The unit automatically reduces the speed according to zoom with Add-on camera and motorised lenses with potentiometer |
| Accuracy of preset positions: 0.02° |
| Internal usable area (WxHxL): 100x100/60x414mm (3.9x3.9/2.4x16.3in) (See drawings) |
| Cable glands: 2xM20 + 1xM16 + unique seal for RJ45 cables |
| Unit weight: 20.4kg (45lb) |
| Housing with side-opening |
| HOUSING'S WINDOW |
| Glass window extra clear: |
| Dimensions (WxH): 125x91mm (4.9x3.6in) |
| Germanium window (usable diameter: 61mm) |
| Thick: 2mm (0.08in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 90% |
| Medium transmittance (from 11.5μm up to 14μm): 77% |
| Germanium window (usable diameter: 66 mm) |
| Thick: 4mm (0.16in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 88.1% |
| Medium transmittance (from 11.5μm up to 14μm): 77.7% |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac ±10%, 1.1A, 50/60Hz |
| 24Vac ±10%, 10A, 50/60Hz |
| 120Vac ±10%, 2A, 50/60Hz |
| Power consumption: |
| 27W, P&T static, heating switched off, without camera |
| 34W, P&T static, heating switched off, 30x camera |
| 49W, P&T in motion, heating switched off, 30x camera |
| 97W, P&T in motion, heating switched on, illuminators off |
| 157W, P&T in motion, heating switched on, illuminators lit, 30x camera |
| Signal cable section: from 0.5mm² (20AWG) up to 1.5mm² (16AWG) |
| Self-powered alarm inputs: 4 |
| Relay outputs: 2 (1 A, 30 Vac/dc max) |
| Temperature-controlled forced air creates an anti-condensation system for the window |
| De-icing system with self-heating glass, 7W max (optional) |
| NETWORK |
| Ethernet connection: 100 Base-TX |
| Network protocols: IPv4, HTTP, Bonjour, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, ONVIF profile S |
| Supported protection systems: password protection (digest-authentication and ws-security) |
| CAMERAS |
| Specifications of the cameras that can be installed |
| Possible Modes of communication with the IP camera: |
| camera controlled by P&T via ONVIF-S (PTZ Master) |
| P&T controlled by camera via RS485 serial port (Camera Master) |
| Selection of the communication mode with the IP camera: via dip-switch |
| Nominal bitrate of the video stream (total of the whole camera stream) 60 Mbit/s, 4K ready |
| IP camera configuration via direct connection to the camera's web page |
| PTZ control (only with Camera Master mode) |
| Serial line: RS485 |
| Protocol: Pelco-D, MACRO |
| Baud rate: 2400baud, 4800baud, 9600baud |
| Camera power supply: 12V, 1.5A max with de-icing function |
| Lens motor power supply: 6-9-12-15 Vdc, 200 mA max |
| Lens potentiometer power supply: 5 V, 15 mA max |
| Lens control: common ZF line, separate ZF line or RS485 |
| Autofocus motorised lens trigger: relay |
| Autofocus lens trigger management: 500 m/s pulse, 15 s pulse, normally open, normally closed |
| Day/Night camera synchronisation: ONVIF or relay |
| Camera I/O export: 1 self-powered input, 1 relay output |
| Maximum weight of camera + lens: 2.3 kg |
| Day/Night Full HD 30x |
| Resolution: Full HD 1080p (1920x1080pixel) |
| Image Device: 1/2.8 type Exmor™ CMOS sensor |
| Effective Pixels: approx. 2.38 Megapixels |
| Minimum Illumination, colour (ICR-OFF): |
| 1.4lx, 1/30s, 50 IRE (Normal mode) |
| 0.35lx, 1/30s, 50 IRE (High sensitivity mode) |
| 0.19lx, 1/3s, 50 IRE (Normal mode) |
| 0.05lx, 1/3s, 50 IRE (High sensitivity mode) |
| Minimum Illumination, B/W (ICR-ON): |
| 0.05lx, 1/30s, 50 IRE (Normal mode) |
| 0.013lx, 1/30s, 50 IRE (High sensitivity mode) |
| 0.002lx, 1/3s, 30 IRE (High sensitivity mode) |
| Lens: f=4.3 mm (wide) ~ 129.0 mm (tele), from F1.6 to F4.7 |
| Zoom: 30x (360x with digital zoom) |
| Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end) |
| Minimum object distance: from 10mm (wide) up to 1200mm (tele) |
| Shutter speed: 1/1 to 1/10000 s, 22 steps |
| White balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto, Outdoor Auto), One-push, Manual |
| Gain: Auto, Manual, Gain Limit (from 3dB up to 43dB, steps: 3dB) |
| Wide Dynamic Range: On/Off/Visibility enhancer, Light level, Brightness Compensation selection, Compensation level |
| Focus System: Auto (Sensitivity: Normal, Low), One-push AF, Manual, Focus compensation with ICR On, Interval AF, Zoom trigger AF |
| Picture Effects: E-flip, Mirror image, Color enhancement |
| Exposure Control: Auto, EV Compensation, Manual, Priority (Shutter priority, Iris priority), Brightness, Slow AE |
| S/N Ratio: more than 50dB |
| Wide-D (wide dynamic range): Yes (130dB) |
| De-fog: Yes (On/Off) |
| Backlight Compensation: Yes |
| ENVIRONMENT |
| For installation indoors and outdoors |
| Operating temperature: from -40°C (-40°F) up to +65°C (149°F) |
| De-icing function intervention: from -40°C (-40°F) up to -10°C (14°F) |
| Wind resistance |
| P&T static: 220km/h (136mph) max |
| P&T in motion, at the maximum speed, with LED illuminators: 87 mph (140 km/h) max |
| Relative humidity: from 10% up to 95% (no condensation) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-4, EN55022 (Class A), EN55032 (Class A), FCC Part 15 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| IP protection degree (EN60529): |
| IP66 |
| Salty fog resistance: EN50130-5, EN60068-2-52 |
| UL certification: cULus Listed,TYPE 4X (Only 24 Vac and 120 Vac versions) |
| EAC certification |
| Vibration test: EN50130-5 Cl. 22, Cl. 23 (EN60068-2-6) |
| ACCESSORIES |
| CAMHD30X Add-on camera Full HD 1080p , 30x ( 4.3-129mm ) , 60fps , temperature up to +65°C (149°F) |
| UPTBVTR ULISSE2 housing upper part with anti-ice glass and wiper |
| UPTIRNBKT Support for mounting of UPTIRN range of LED illuminators |
| UPTIRN108A00 LED illuminator for ULISSE, 10°, 850nm, 24Vac - 12/24Vdc |
| UPTIRN308A00 LED illuminator for ULISSE, 30°, 850nm, 24Vac - 12/24Vdc |
| UPTIRN608A00 LED illuminator for ULISSE, 60°, 850nm, 24Vac - 12/24Vdc |
| UPTIRN109A00 LED illuminator for ULISSE, 10°, 940nm, 24Vac - 12/24Vdc |
| UPTIRN309A00 LED illuminator for ULISSE, 30°, 940nm, 24Vac - 12/24Vdc |
| UPTIRN10WA00 LED illuminator for ULISSE, 10°, white light, 24Vac - 12/24Vdc |
| UPTIRN30WA00 LED illuminator for ULISSE, 30°, white light, 24Vac - 12/24Vdc |
| UPTIRN60WA00 LED illuminator for ULISSE, 60°, white light, 24Vac - 12/24Vdc |
| UPTJBUL Junction weatherproof box for cables connexion (according UL norm) |
| WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac |
| WASPT0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac |
| WASPT0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac |
| WASPT1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac |
| WASPT3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac |
| WASNX1V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 230Vac |
| WASNX2V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac |
| WASNX3V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 120Vac |
| BRACKETS AND ADAPTORS |
| UPTWBA Wall bracket with internal cable channel |
| UPTWBTAB Parapet bracket with internal cable channel |
| PTCC1 Pole mount adaptor |
| WCWGC Corner mount adaptor |
