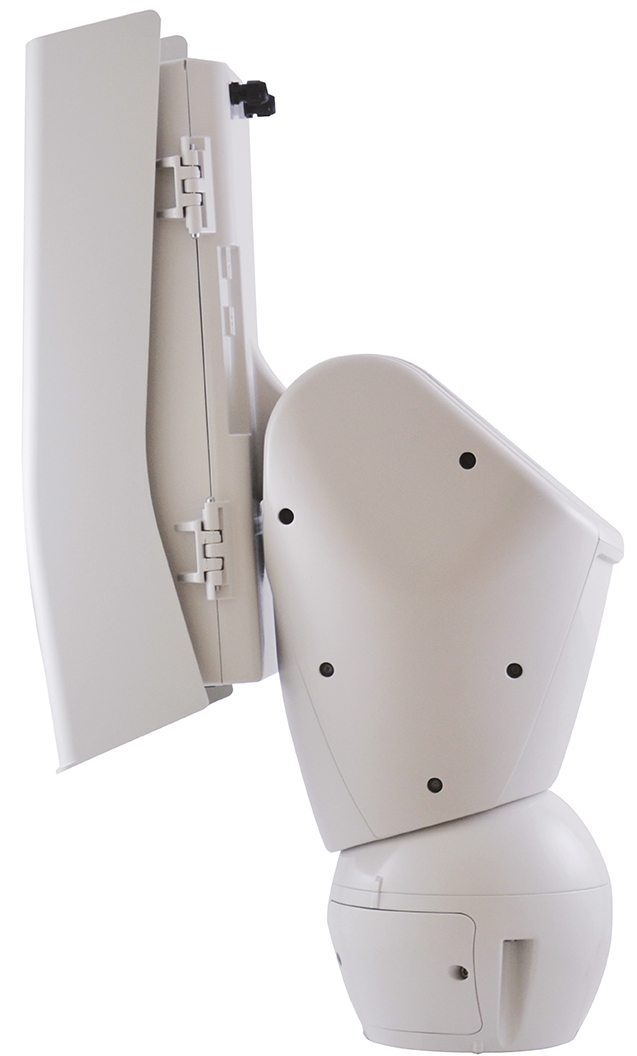

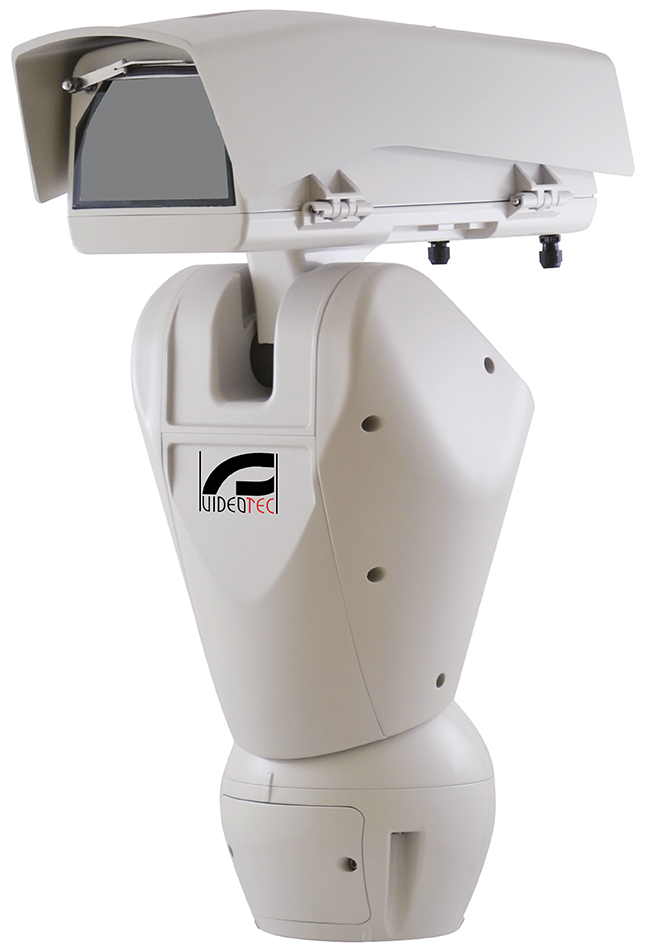

ULISSE2 is an outdoor full IP PTZ unit for control and management of all third-party IP cameras and thermal imaging cameras (ONVIF-S or those equipped with an RS485 serial port), with direct access via a browser to the camera's interface for setup and diagnostics.
Thanks to ONVIF-S protocols, the Full IP connectivity of the ULISSE2 allows you to network-control P&T plus all camera functions, including the wiper, washer pump, pre-sets, illuminator activation and setup, using the most popular VMS' on the market.
The advanced protection technology used has allowed certain characteristics of the new PTZ to be enhanced, such as the temperature range of -40°C (-40°F) to +65°C (+149°F). The unit can be demisted with forced air and the temperature is constantly controlled, thus preventing condensation and guaranteeing an ideal operating temperature range for the camera.

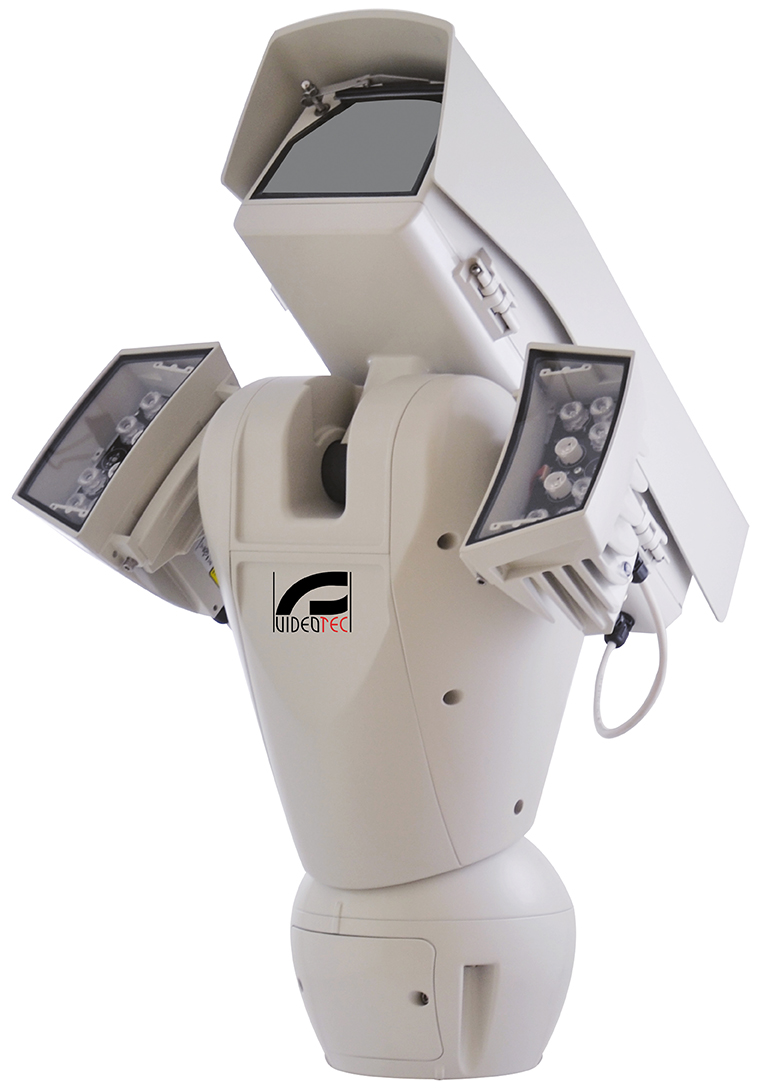

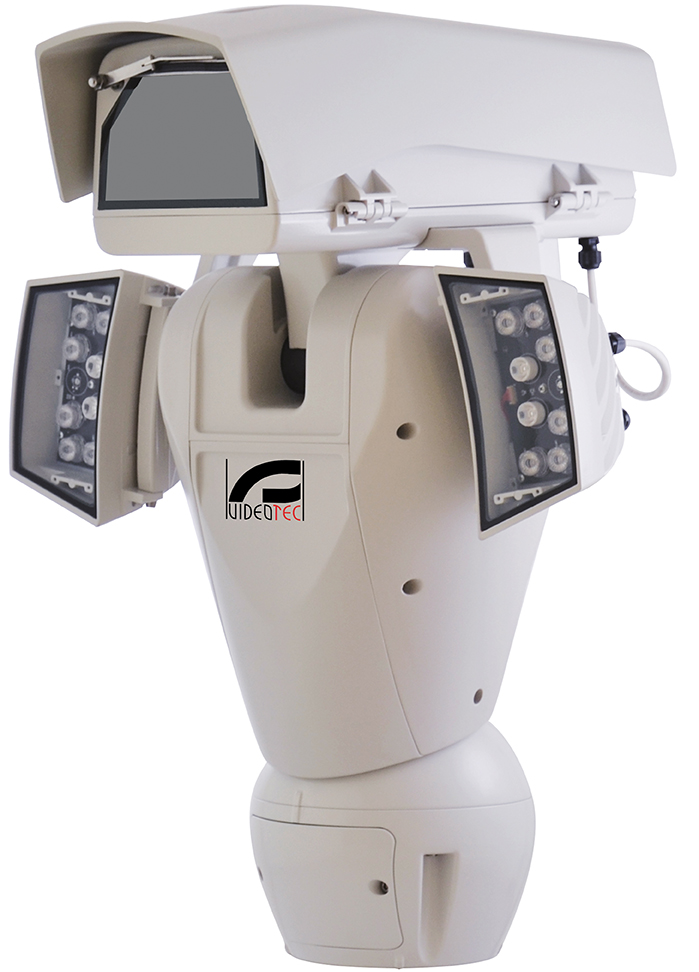

The LED illuminators are easily integrated onto the P&T, even post-installation, without the need for additional power sources and independently of the unit’s power supply. The second illuminator can be turned on at certain zoom parameters, pre-set positions or manually to avoid spotlighting a near-by subject or to control a floodlight.
Improved accessibility to connections allows you to carry out wiring and diagnostics quickly and easily, without dismantling the product. ULISSE2 can be completely assembled using a single hex key (supplied)
Features:
- Full IP PTZ unit for complete management and control of IP ONVIF-S cameras
- 60 Mbit/s video stream for 4K cameras
- Direct access to third-party cameras via a browser, for setup and diagnostics as a single IP address
- Tested and certified from -40°C to +65°C (-40°F to +149°F), IP66 and NEMA TYPE 4X
- Sophisticated temperature control and demisting system
| MECHANICAL | ||
| Epoxypolyester powder painting | RAL9002 colour | |
| Horizontal rotation | 360°, continuous rotation | |
| Vertical rotation | from -40° up to +90° | |
| Horizontal speed (variable) | from 0.02°/s up to 100°/s (from 0.02°/s up to 50°/s with illuminators) | |
| Tilt speed (variable) | from 0.02°/s up to 50°/s (from 0.02°/s up to 50°/s with illuminators) | |
| Accuracy of preset positions | 0.02° | |
| Internal usable area (WxHxL) | 100x100/60x414mm (3.9x3.9/2.4x16.3in) (See drawings) | |
| Cable glands | 2xM20 + 1xM16 + unique seal for RJ45 cables | |
| Unit weight: | 20.4kg (45lb) | |
| HOUSING'S WINDOW | ||
| Dimensions (WxH) | 125x91mm (4.9x3.6in) | |
| Thick | 2mm (0.08in) | |
| External treatment | antiscratch (Hard Carbon Coating - DLC), antireflection | |
| Internal treatment | antireflection | |
| Spectral range | from 7.5μm up to 14μm | |
| Medium transmittance (from 7.5μm up to 11.5μm) | 90% | |
| Medium transmittance (from 11.5μm up to 14μm) | 77% | |
| Thick | 4mm (0.16in) | |
| External treatment | antiscratch (Hard Carbon Coating - DLC), antireflection | |
| Internal treatment | antireflection | |
| Spectral range | from 7.5μm up to 14μm | |
| Medium transmittance (from 7.5μm up to 11.5μm) | 88.1% | |
| Medium transmittance (from 11.5μm up to 14μm) | 77.7% | |
| NETWORK | ||
| Ethernet connection | 100 Base-TX | |
| Network protocols | IPv4, HTTP, Bonjour, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, ONVIF profile S | |
| Supported protection systems | password protection (digest-authentication and ws-security) | |
| Day/Night Full HD 30x | ||
| Resolution | Full HD 1080p (1920x1080pixel) | |
| Image Device | 1/2.8 type Exmor™ CMOS sensor | |
| Effective Pixels | approx. 2.38 Megapixels | |
| Lens | f=4.3 mm (wide) ~ 129.0 mm (tele), from F1.6 to F4.7 | |
| Zoom | 30x (360x with digital zoom) | |
| Horizontal Viewing Angle | from 63.7° (wide end) up to 2.3° (tele end) | |
| Minimum object distance | from 10mm (wide) up to 1200mm (tele) | |
| Shutter speed | 1/1 to 1/10000 s, 22 steps | |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto, Outdoor Auto), One-push, Manual | |
| Gain | Auto, Manual, Gain Limit (from 3dB up to 43dB, steps: 3dB) | |
| Wide Dynamic Range | On/Off/Visibility enhancer, Light level, Brightness Compensation selection, Compensation level | |
| Focus System | Auto (Sensitivity: Normal, Low), One-push AF, Manual, Focus compensation with ICR On, Interval AF, Zoom trigger AF | |
| Picture Effects | E-flip, Mirror image, Color enhancement | |
| Exposure Control | Auto, EV Compensation, Manual, Priority (Shutter priority, Iris priority), Brightness, Slow AE | |
| S/N Ratio | more than 50dB | |
| Wide-D (wide dynamic range) | Yes (130dB) | |
| De-fog | Yes (On/Off) | |
| Backlight Compensation | Yes |
