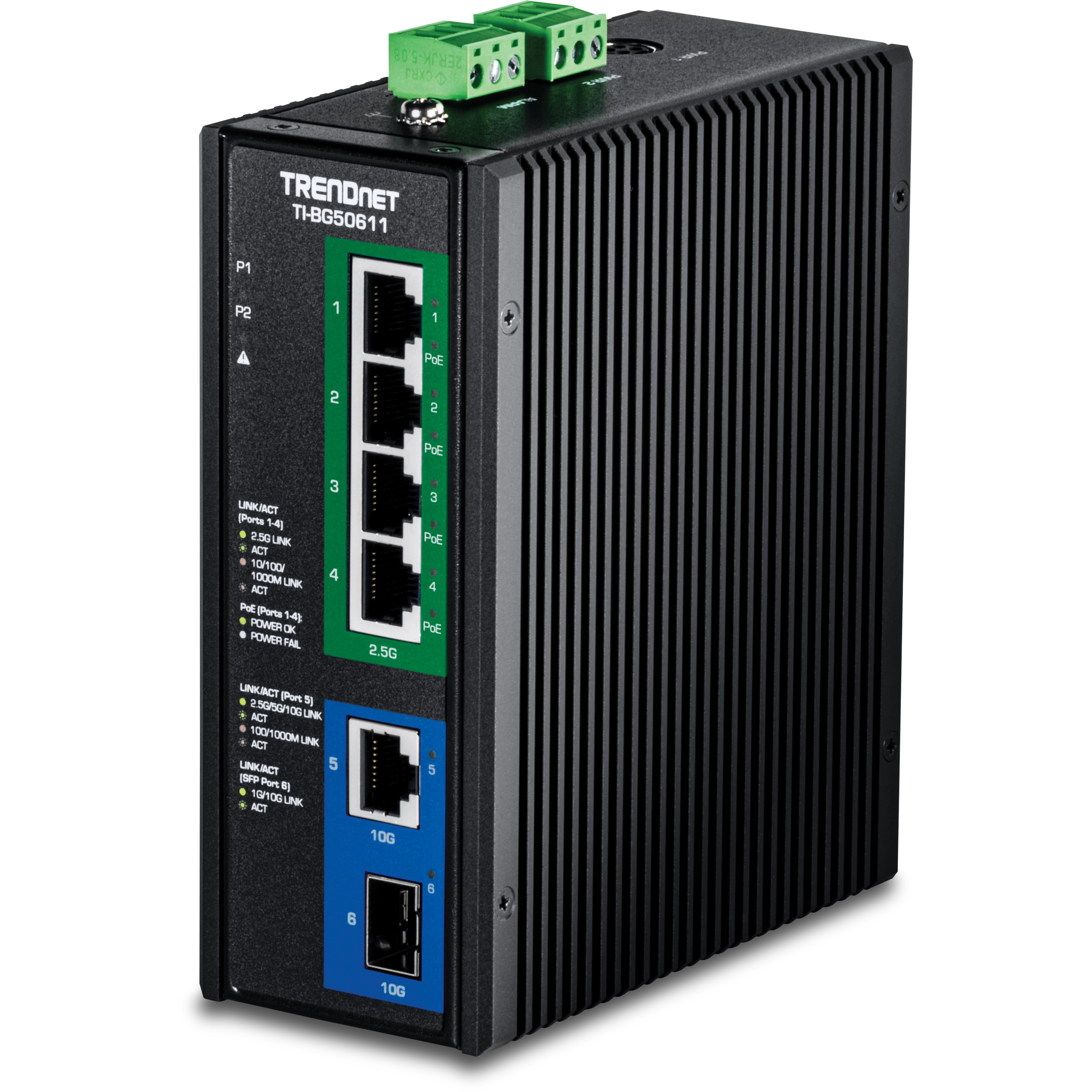

Trendnet - TI-BG50611 - 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports

Name: Trendnet - TI-BG50611 - 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports
Brand: Trendnet
SKU: TI-BG50611

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Technical Overview

• 4 x 2.5G PoE++ ports
• 1 x 10G RJ-45 port
• 1 x 10G SFP+ port
• 240W PoE power budget
• 60Gbps switching capacity
• Hardened IP50 rated metal switch
• Fast PoE minimizes wait time for powering up PoE devices

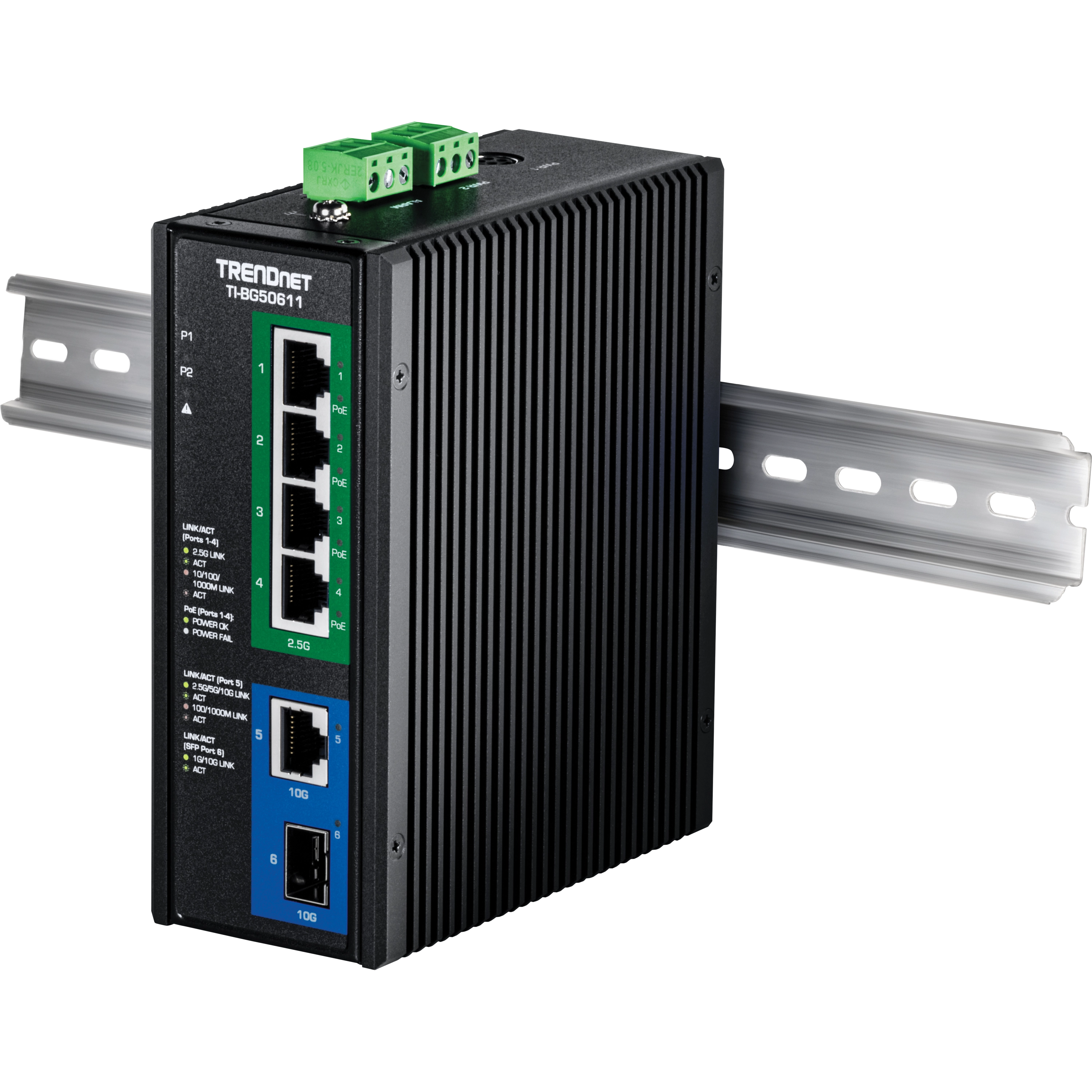

• Includes DIN-Rail and wall mounts
• Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

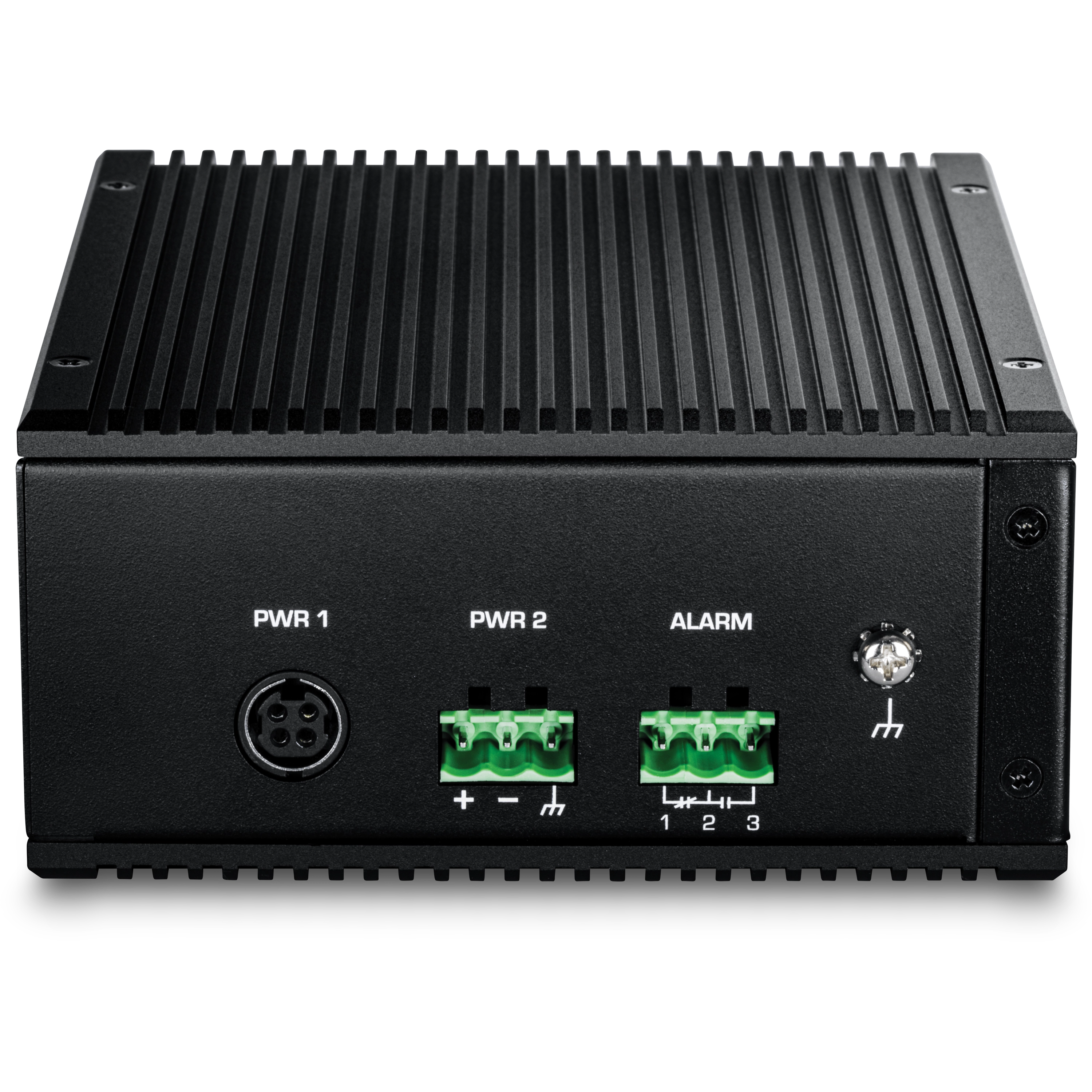

• Dual power inputs for redundancy
• Alarm output triggered by power failure
• Power supply sold separately (TI-S48048, TI-S24052, 48VDC3000)
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3z • IEEE 802.3x • IEEE 802.3ae • IEEE 802.3af • IEEE 802.3an • IEEE 802.3at • IEEE 802.3bt • IEEE 802.3bz
Device Interface	• 4 x 2.5G PoE++ ports (10Mbps/100Mbps/1Gbps/2.5Gbps) • 1 x 10G SFP+ port (1Gbps/10Gbps) • 1 x 10G RJ-45 port (10Mbps/100Mbps/1Gbps/2.5Gbps/10Gbps) • 2 x 3-pin removable terminal blocks • LED indicators • DIN-Rail mount • Wall mount • Grounding point
Data Transfer Rate	• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit: 2Gbps (full duplex) • 2.5 Gigabit: 5Gbps (full duplex) • 10 Gigabit: 20Gbps (full duplex) • 1G Fiber: 2Gbps (full duplex) • 10G Fiber: 20Gbps (full duplex)
Performance	• Data RAM Buffer: 1MB • Switching Fabric: 60Gbps • MAC Address Table: 4K entries • Jumbo Frame: 12KB • Forwarding rate: 44.64Mpps (64-byte packet size)
Special Features	• Hardened components rated for extreme temperatures • Fast PoE • Multiple power inputs • Auto-Negotiation • Auto store and forward architecture • Automatic address learning and address aging • ESD 6kV protection
DC Power	• Input: 48 - 57V DC • Compatible power supply: TI-S24052, TI-S48048 (sold separately) • Max. consumption: 10.2W (no PD)
AC Power	• Input 100 – 240V AC, 50/60Hz, 2A • Compatible power adapter: 48VDC3000 (sold separately) • Output: 48V DC, 3.34A 160W max.
PoE	• PoE: up to 15.4W per port • PoE+: up to 30W per port • PoE++: up to 95W per port • Power budget: 240W
Terminal Block	• 6-pin terminal block • Alarm relay contact • Wire range: 0.34mm^2 to 2.5mm^2 • Solid wire (AWG): 12-24/14-22 • Stranded wire (AWG): 12-24/14-22 • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm • Wire strip length: 7-8mm
Alarm Relay Contact	• Relay outputs with current carrying capacity of 1A, 24V DC • Short circuit mode when two power sources are connected • Open circuit mode when only one power source is connected
MTBF	83,000 hours @ 75°C
Housing	• IP50 metal case • DIN-Rail mount • Wall mount • Grounding pin • 6kV ESD protection
Operating Temperature	- 40° – 75° C (-40 – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	156 x 122 x 48mm (6.1 x 4.8 x 1.9 in.)
Weight	630g (1.38 lb)
Certifications	• CE • FCC • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-31) • Vibration (IEC 60068-2-6) • IEC 61000-6-2 • IEC 61000-6-4 • IEC 61000-4-5
Warranty	Lifetime Warranty
Package Contents	• TI-BG50611 • Quick Installation Guide • Removable terminal blocks • DIN-Rail and wall mount kit

TRENDnet's 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports model TI-BG50611 delivers network connectivity to rugged environments while reducing installation costs and setup time thanks to its Power over Ethernet technology. This industrial multi-gigabit PoE++ switch features a rugged, IP50-rated metal enclosure designed to withstand high levels of vibration and shock while operating within the temperature range of -40° – 75° C (-40° – 167° F) typical of industrial environments. This hardened industrial PoE++ switch has four 2.5G Ethernet PoE++ ports, one 10G Ethernet port and one 10G SFP+ port for long-distance fibre networking applications.
