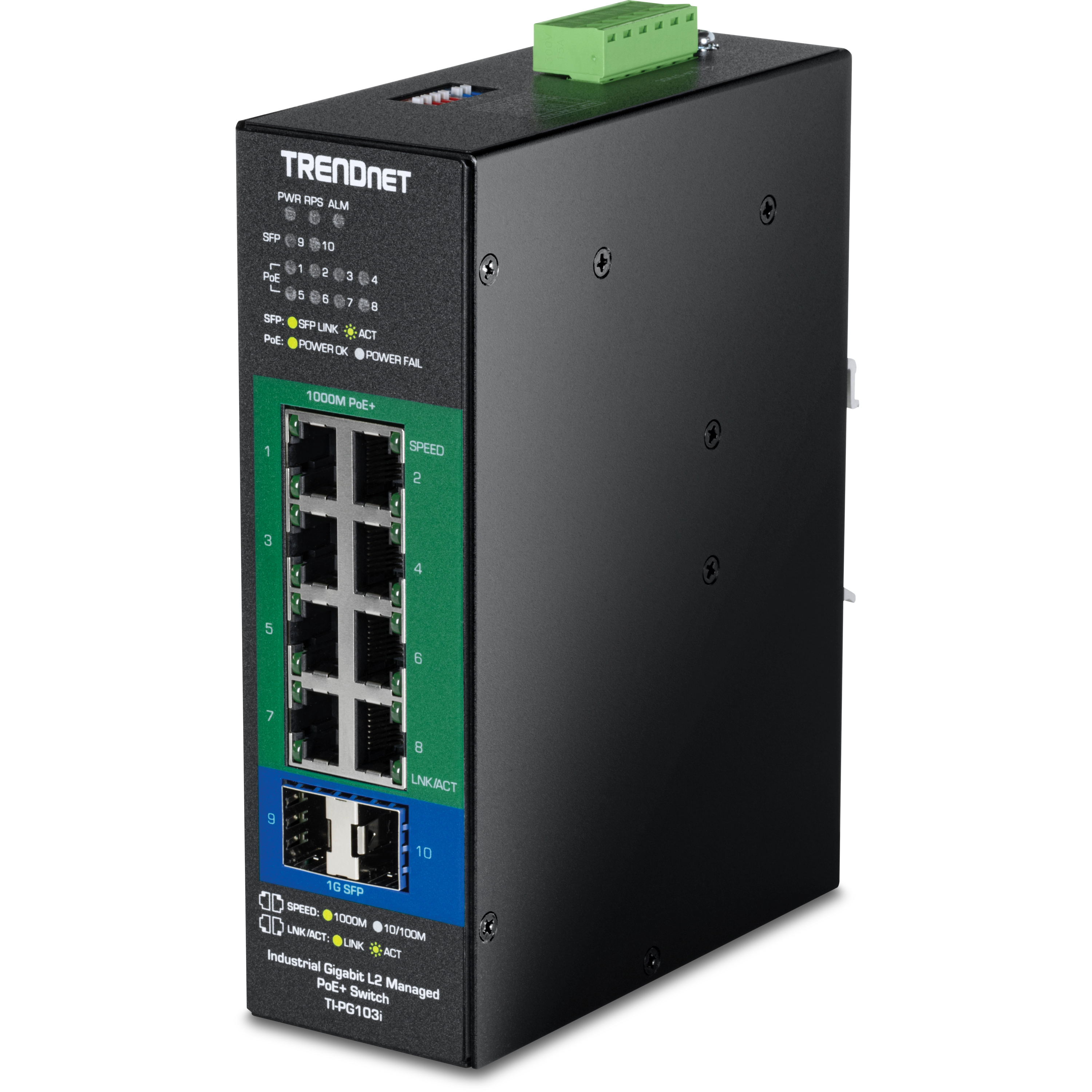

Trendnet - TI-PG103i - 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24 - 57V

Name: Trendnet - TI-PG103i - 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24 - 57V
Brand: Trendnet
SKU: TI-PG103i

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 8 x Gigabit PoE+ ports
• 2 x SFP ports
• Supports 100/1000Base-FX fiber SFP modules
• PoE power budget: 240W@48VDC or 124W@24VDC
• PoE alive check restarts unresponsive PoE powered devices
• Remote cloud management with TRENDnet Hive (Additional fee applies)
• 20Gbps switching capacity
• Hardened IP40 rated metal housing

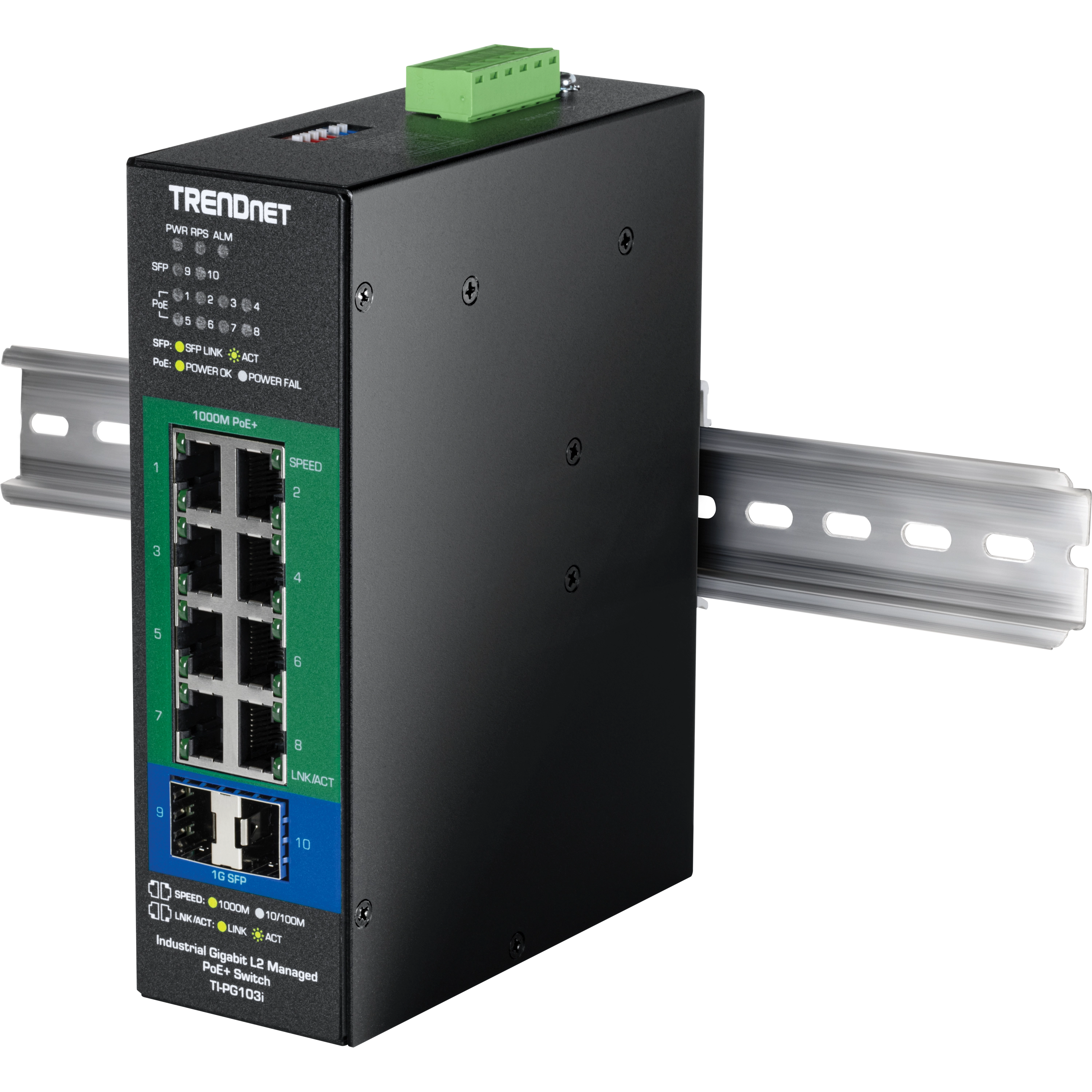

• Includes DIN-Rail mounting bracket
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• IEEE 802.1p QoS with queue scheduling support
• Bandwidth control per port
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (models: TI-S24048, TI-S48048, TI-S24052, TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

Standards	• IEEE 802.1d • IEEE 802.1p • IEEE 802.1Q • IEEE 802.1w • IEEE 802.1X • IEEE 802.1ab • IEEE 802.1ax • IEEE 802.3u • IEEE 802.3x • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3ad • IEEE 802.3az • IEEE 802.3af • IEEE 802.3at

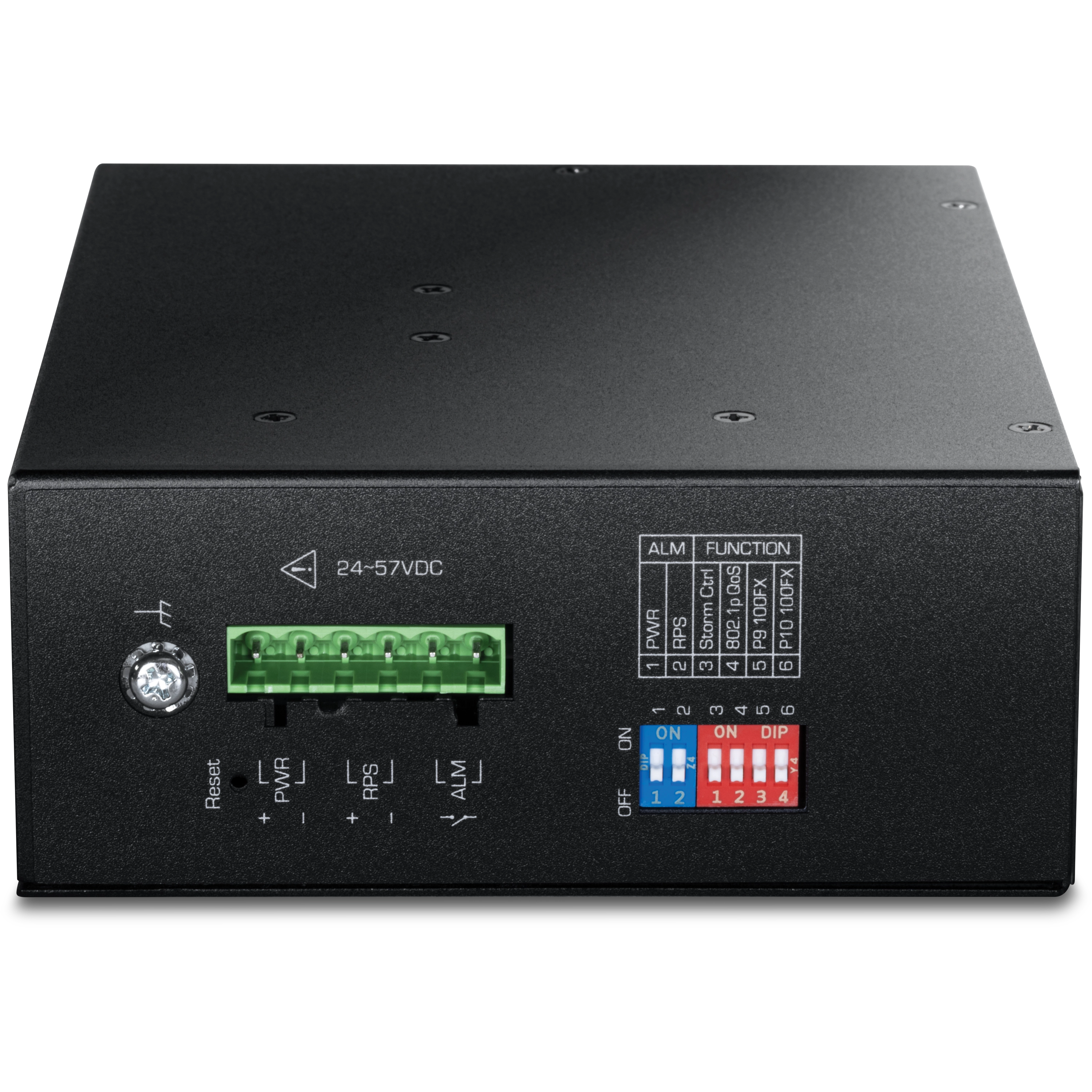

Device Interface	• 8 x Gigabit PoE+ ports • 2 x 100/1000Mbps SFP ports • 6-pin removable terminal block (primary/RPS power inputs & alarm relay output) • DIP switches • LED indicators • Reset button
Performance	• Switch fabric: 20Gbps • RAM buffer: 128MB • MAC address table: 8K entries • Jumbo frames: 10KB • Forwarding rate: 14.88Mpps (64-byte packet size)
Management	• HTTP web-based GUI • CLI: Telnet / SSHv2 • SNMP v1, v2c, v3 • SNMP trap (up to 5 receivers) • RMON groups 1/2/3/9 • Modbus • Device configuration backup & restore, upgrade firmware, reboot, and reset to default • Multiple administrative or read-only user accounts • Enable or disable power saving mode per port • Static MAC entries • LLDP (Link layer discovery protocol) • Topology map • ONVIF device discovery • SNTP • SMTP alert • Syslog • Port statistics/utilization • Traffic monitor • Port mirror: one to one, many to one • Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps) • Loopback detection • DHCP relay/option 82 • SFP DDMI (Digital Diagnostic Monitoring Interface) • ERPS (Ethernet Ring Protection Switching) G8032v2
Hive Cloud Management	• Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Enable & disable PoE, set PD (powered device) alive check, configure PoE scheduling, and monitor PoE budget utilization (for PoE switches only) • Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	• MIB II RFC 1213 • Bridge MIB RFC 1493 • RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree	• IEEE 802.1d STP (spanning tree protocol) • IEEE 802.1w RSTP (rapid spanning tree protocol) • BPDU filter, guard, and root guard
Link Aggregation	Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)
Quality of Service (QoS)	• 802.1p Class of service (CoS) • DSCP (Differentiated Services Code Point) • Bandwidth control per port • Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN	• 802.1Q tagged VLAN • MAC-based VLAN • Protocol VLAN • Port isolation • Up to 256 VLAN groups, ID range 1-4094
Multicast	• IGMP snooping v1, v2, v3 • IGMP querier • IGMP fast leave • Up to 256 multicast groups • Static multicast entries
Access Control	• 802.1X authentication (Local user database, RADIUS, guest VLAN assignment) • DHCP snooping/screening • Trusted host/IP access list for management access • Port Security/MAC address learning restriction (Up to 100 entries per port) • Static/dynamic ARP inspection
ACL	• Source/Destination MAC address • Source/Destination IP address • Source Interface • VLAN ID • EtherType • TCP/UDP port 1-65535
Special Features	• Netlite device discovery and map display in GUI • Port security: MAC address learning restriction per port • DHCP relay/option 82 & DHCP server snooping/screening support • Wide operating temperature range • Redundant power inputs • Alarm relay triggered by power failure • Surge and ESD protection
Power	• PWR (Primary) terminal input: 24 – 57V DC • RPS (Redundant) terminal input: 24 – 57V DC • Compatible power supply: TI-S12024 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately • Max. Consumption: 13W (no PoE load), 253W (full PoE load)
PoE	• PoE budget: 240W@48V DC input, 124W@24V DC input • 802.3at: Up to 30W per port • PoE Mode A: Pins 1, 2, 3, and 6 for power • PoE auto classification • PoE port priority/power scheduling/PD alive check • Over current/short circuit protection
Terminal Block	• Redundant power inputs, alarm relay contact, 6 pin • Wire range: 0.5 mm² to 2.5 mm² • Solid wire (AWG): 12-26 • Stranded wire (AWG): 12-26 • Wire strip length: 10-11mm
DIP Switch	• Switch Status Function • 1 OFF Disable alarm relay for PWR power input • ON Enable alarm relay for power failure on PWR power input • 2 OFF Disable alarm relay for RPS power input • ON Enable alarm relay for power failure on RPS power input • 3 OFF Storm control managed by switch configuration • ON Enable storm control (Broadcast and DLF rate set to 300pps) Takes precedence over storm control switch configuration • 4 OFF 802.1p QoS managed by switch configuration • ON Enable 802.1p QoS on ports 1 and 2 (Set CoS priority to tag 4 on ports 1 and 2) Takes precedence over 802.1p QoS switch configuration • 5 OFF Port 9 SFP set to Gigabit speed full duplex • ON Port 9 SFP set to 100Mbps speed full duplex • 6 OFF Port 10 SFP set to Gigabit speed full duplex • ON Port 10 SFP set to 100Mbps speed full duplex
Alarm Relay Output	• Relay output with current carrying capacity of 1A, 24V DC • Short circuit mode when one power source is connected • Open circuit mode when two power sources are connected
Enclosure	• IP40 rated metal enclosure • Fanless passive cooling • DIN-Rail mount • Grounding point • ESD (Ethernet) Protection: 8kV DC • Surge (Power) Protection: 6kV DC
MTBF	460,726 hours @ 25° C
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
Weight	930g (2.05 lbs.)
Certifications	• CE • FCC • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-32) • Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty
Package Contents	• TI-PG103i • Removable terminal block • DIN-Rail mounting bracket

Name

Description

Size

Downloads

File

TI-PG103i - 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch - Datasheet.pdf

0.2mb

TRENDnet’s 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch model TI-PG103i features eight Gigabit PoE+ ports with a 240 W PoE budget and two SFP ports supporting both 100Base-FX and 1000Base-FX modules for long-distance fibre applications. This hardened voltage booster network switch features an IP40-rated metal enclosure designed to withstand high levels of vibration and shock while operating within the wide temperature range of -40°C to 75°C (-40°F to 167°F) required in industrial environments. Advanced traffic management, troubleshooting and SNMP monitoring capabilities make this a powerful industrial managed PoE+ switch solution for SMB networks.
