VideoTec - MPXHD21CV00C - MPX SERIES2 in AISI 316L, with video analysis functions, 24Vac, Super Low-Light Day/Night FullHD camera zoom 30x, H.264/AVC, wiper
Part number:
MPXHD21CV00C
Price:

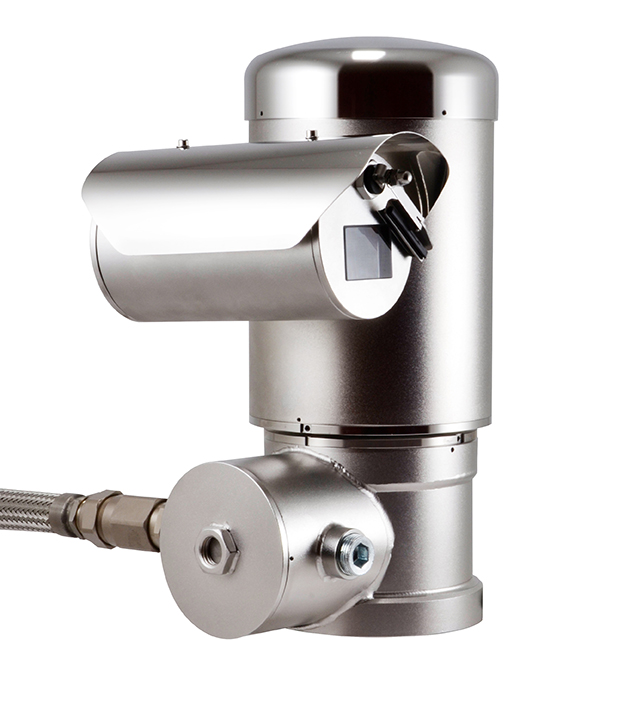

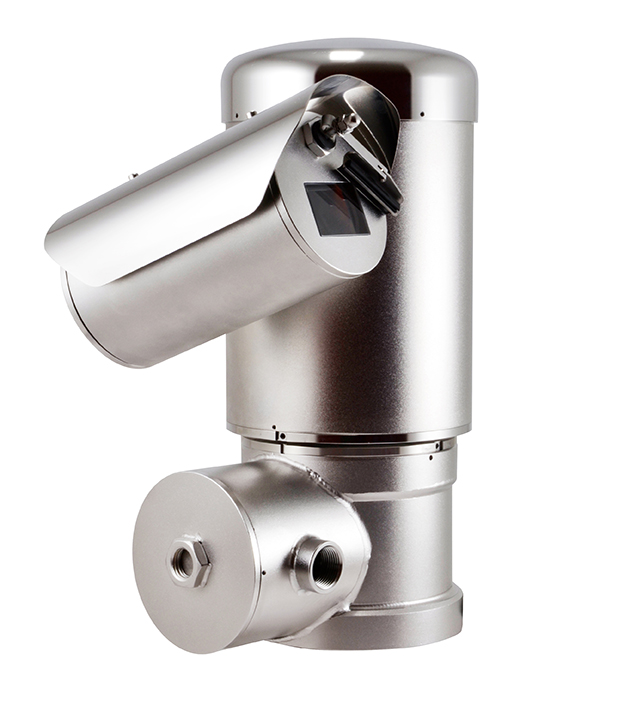

MAXIMUS MPX SERIES2 is an ex-proof Full-HD PTZ camera that is ideal for effective preventative video surveillance and process monitoring in the Oil & Gas, maritime or industrial sectors where fire or explosion hazards may exist due to the presence of flammable gases or vapors, flammable liquids or combustible dusts.
MAXIMUS MPX SERIES2 offers the highest level of corrosion resistance thanks to its solid AISI 316L stainless-steel construction and its microshot and electropolished surfaces. As well as this, the IP66/IP67/IP68/IP69, NEMA Type 4X and Type 6P certifications guarantee complete protection against water and dust. It can continue to operate in winds up to 210 Km/h.
CERTIFIED QUALITY
Every version of MAXIMUS MPX SERIES2 PTZ is explosion-proof certified with an ambient temperature of up to +80°C. They have international certifications for use in Zone 1 and 2, Group IIC for gas, Zone 21 and 22, Group IIIC, Class 1 Div. 2, for dust (ATEX, IECEx, UL/CSA, EAC Ex, INMETRO, KCs). Thanks to the double cable entry, both 120Vac and 230Vac voltage supply versions are compliant with UL/CSA standards.
MAXIMUS MPX SERIES2 products are Lloyd's Register Marine Type Approval System Test Specification Number 1 certified and can be used in Marine and Offshore environments with category types ENV1, ENV2, ENV3 and ENV5 (for example, passenger ships, open bridges, closed spaces, technical rooms subject to heat generated by equipment, areas where there is a risk of explosion, and visual support for docking manoeuvres).
INSTALLATION FLEXIBILITY

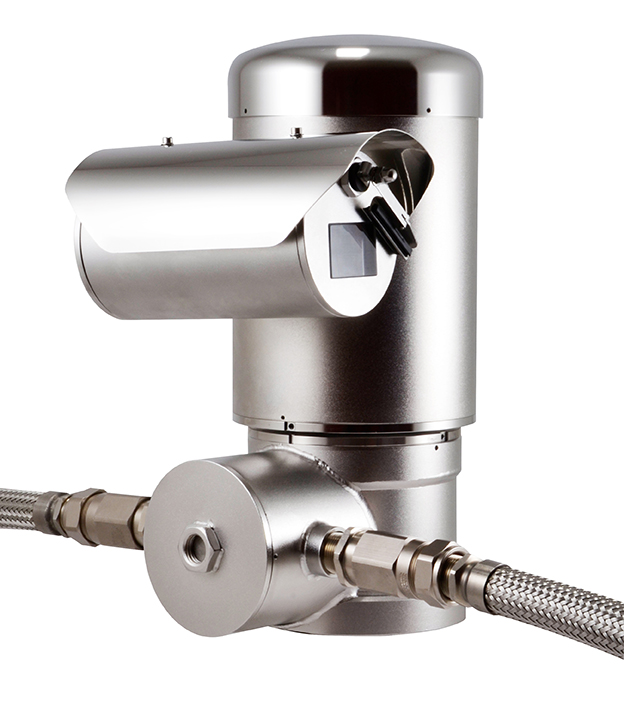

The SERIES2 range of cameras can easily connect the PTZ via fibre optic thanks to the SFP module slot installed directly into the junction box integrated into the base of the unit.The double cable entry and the numerous accessories and supports available (washing system, communication box, pre-wired cables, cable glands, wall supports, railing supports, corners and pole), allow exceptional installation flexibility.
Furthermore, the compact design adapts to narrow spaces, while the reduced weight of the unit makes it simpler to mount.
Features:
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Maximum resistance in corrosive environments
- Possibility of direct connection via fiber optic
- Image electronic stabilizer and dynamic masking
| GENERAL |
| AISI 316L stainless steel construction |
| External surfaces micro-shot peened and electro-polished |
| Dynamic positioning control system |
| MECHANICAL |
| Cable inputs: 2 x 3/4" NPT |
| Zero backlash |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -90° up to +90° |
| Horizontal speed (variable): from 0.1° to 100°/s |
| Tilt speed (variable): from 0.1° to 100°/s |
| Accuracy of preset positions: 0.02° |
| Integrated wiper |
| Window with extra clear tempered glass: thick 12mm (0.47in) |
| Unit weight: 26.5kg (58lb) |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac ±10%, 0.5A, 50/60Hz |
| 24Vac ±10%, 5A, 50/60Hz |
| 120Vac ±10%, 1A, 50/60Hz |
| 220Vac ±10%, 0.54A, 50/60Hz |
| 100Vac ±10%, 1.2A, 50/60Hz |
| Power consumption: |
| 120W max |
| NETWORK |
| RJ45 port |
| Ethernet connection: 10BASE-T/100BASE-T |
| Slot SFP (SMALL FORM FACTOR PLUGGABLE) |
| Ethernet connection:100BASE-FX |
| Supply voltage: 3.3V |
| Standard: MSA compliant |
| The SFP module (not supplied by VIDEOTEC) must meet the following requirements: |
| Laser: Class 1, complies with EN60825-1 |
| Certification: UL/IEC 60950-1 or UL/IEC 62368-1 |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| CAMERAS |
| SONY FCB-EV7520 Day/Night Full HD 30x |
| Resolution: Full HD 1080p (1920x1080) |
| Image Sensor: 1/2.8" Exmor™ R CMOS sensor |
| Effective Pixels: approx. 2.13 Megapixels |
| Minimum Illumination: |
| Colour: 0.0013lx (50 IRE, High sensitivity on) |
| B/W: 0.0008lx (30 IRE, High sensitivity on) |
| Focal length: from 4.3mm (wide) up to 129mm (tele) |
| Zoom: 30x (360x with digital zoom) |
| Iris: from F1.6 up to F14 (Auto, Manual) |
| Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end) |
| Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Shutter speed: from 1/1s up to 1/10000s (Auto, Manual) |
| White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto) |
| Gain: from 0dB up to 50.0dB (Auto, Manual) |
| Wide Dynamic Range: 120dB |
| Focus System: Auto (PTZ Trigger, Full Auto), Manual |
| Picture Effects: E-flip |
| Noise removal (2D, 3D): Off, On (from level 1 up to level 5) |
| Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority) |
| De-fog: Off, Low, Mid, High |
| Dynamic masking of privacy zones: maximum 24 masks settable, maximum 8 simultaneously displayable |
| Indoor Flicker Reduction |
| Gain Limit: from10.7dB up to 50dB |
| High sensitivity: On/Off |
| Backlight Compensation: On/Off |
| Auto Slowshutter: On/Off |
| Exposure compensation: Off, On (from -10.5dB up to +10.5dB) |
| Sharpness: from level 0 up to level 15 |
| High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15) |
| Digital image stabilization: On/Off |
| VIDEO |
| Video encoder |
| Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
| Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Video compression: H.264/AVC, MJPEG, MPEG4 |
| 3 independent video streams Full HD |
| Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps |
| Selectable frame rate from 1 to 60 images per second (fps) |
| Web Server |
| Directional OSD (maximum 4 settable areas) |
| Motion Detection |
| Video analytics: VIDEOTEC ANALYTICS (optional) |
| QoS: Differentiated DSCPs for streaming and device management |
| SNMP and NTCIP protocols |
| VIDEO ANALYTICS |
| Ultra-robust detection algorithms and auto-tracking, specifically for outdoor perimeter control. |
| Targets Classification: People, vehicles, generic objects |
| Programmable rules for video analysis, VIDEOTEC ANALYTICS (it is possible to rapidly configure up to ten rules for every preset using an intuitive control management interface) |
| Line crossing: the target triggers an alarm if it crosses the line in one or both directions |
| Entering/leaving area: the target triggers an alarm if it leaves or enters the configured area |
| Appearing in area: the target triggers an alarm if it appears inside the configured area |
| Loitering: the target triggers an alarm if it stays inside the configured area over the set time |
| Detection Mask: disables the detection activity in a portion of the image to prevent false alarms |
| Video Tampering Detection: a specific ONVIF alarm is triggered if the video camera view is obstructed (e.g. spray) |
| I/O INTERFACE |
| Input for remote reset: 1 |
| Alarm inputs: 1 |
| Relay outputs: 1+1 (1 relay reserved for washer pump and one configurable, 1A, 30Vac/60Vdc max) |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Certification temperature: from -40°C (-40°F) up to +80°C (+176°F) |
| Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) (not valid for versions with integrated video analysis, VIDEOTEC ANALYTICS) |
| De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F) |
| Wind resistance |
| PTZ static: 230km/h (143mph) max. |
| PTZ operational at the maximum speed: 210km/h (130.5mph) max. |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4, EN61000-3-2, EN61000-3-3 |
| RoHS (CE): EN50581 |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1, CAN/CSA C22.2 No. 62368-1-14) (not available for 100Vac and 220Vac versions): cULus Listed |
| Electromagnetic compatibility (North America) (not available for 100Vac and 220Vac versions): FCC part 15 (Class A), ICES-003 (Class A) |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68, IP69 |
| Level of protection Type (UL50E) (not available for 100Vac and 220Vac versions): 4X, 6P |
| RCM (Australian and New Zealand Regulatory Compliance Mark) |
| NDAA-compliant |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (with MAXIMUS MBX communication box or with FM1010 filter): Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
