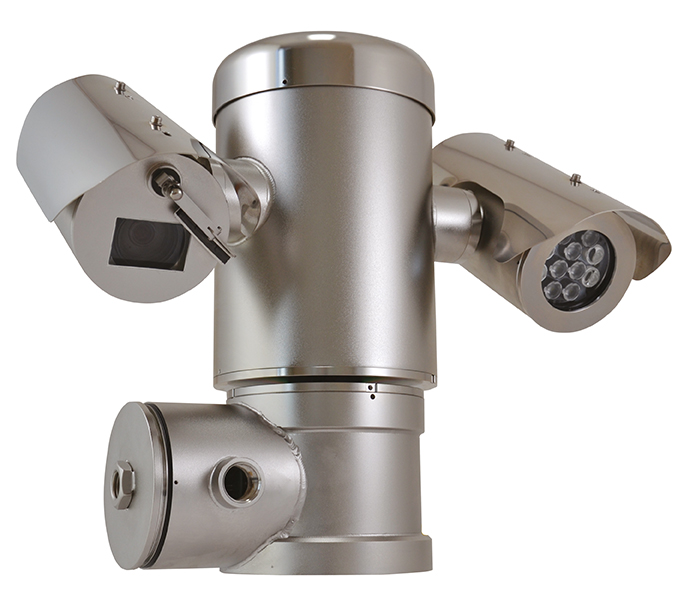

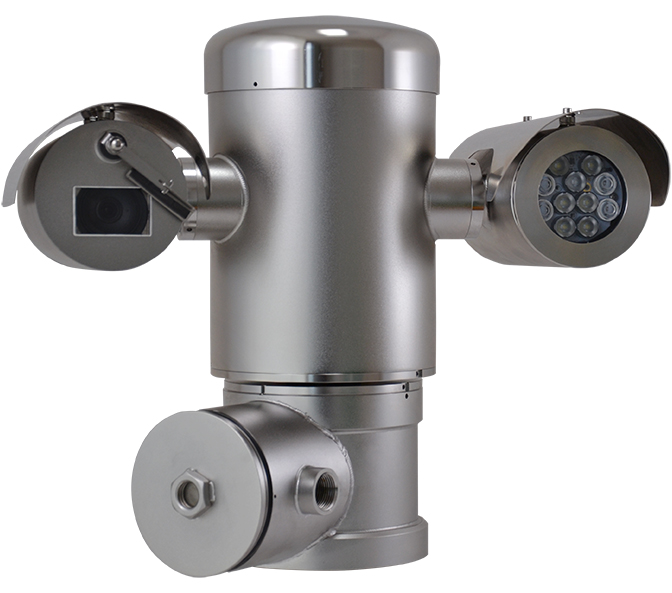

VideoTec - MPXL1282F000C - MPXL SERIES2 ex-proof PTZ, 220-230Vac, camera SONY FCB-EV7520 Super Low-light Day/Night FullHD zoom 30x, 1/2.8", electronic stabilizer and dynamic masking, with IR illuminator 850nm, SPOT and WIDE lenses
Part number:
MPXL1282F000C
Price:

MAXIMUS MPXL SERIES2 is the new generation of ex-proof PTZ with a Day/Night camera and built-in LED illuminator.



This Certified Ex-proof PTZ Camera is the Optimum Solution for Effective Video Surveillance and Process Control in the Oil & Gas, Maritime and Industrial Sectors and in Environments Where There is a Risk of fire or Explosion as a Result of Flammable Gases or Vapours, Flammable liquids or Combustible Dust Being Present.



MAXIMUS MPXL SERIES2 offers maximum resistance in corrosive environments with industrial and marine environments, thanks to construction in AISI 316L stainless steel and micro-shot peened and electro-polished surfaces.Furthermore, the IP66/IP67/IP68/IP69, NEMA Type 4X and Type 6P certification guarantees complete



CERTIFIED QUALITY

All the versions of the PTZ MAXIMUS MPXL SERIES2 are explosion-proof certified with an ambient temperature up to +70°C with international certification for use in Zone 1 and 2, Group IIC for gas, Zone 21 and 22 and Group IIIC for dust.

MAXIMUS SERIES2 products are Lloyd's Register Marine Type Approval System Test Specification Number 1 certified and can be used in Marine and Offshore applications.



SONY FCB-EV7520 CAMERA

The visible camera is a SONY FCB-EV7520 with 30x optical zoom and a 1/2.8” Exmor R™ CMOS sensor with Full HD 1080/60p resolution that produces the highest image quality, even when filming moving objects or in poor lighting conditions. The advanced SONY technology brings Wide Dynamic Range and a configurable High Light Compensation that allows optimal management of areas subject to vibrations and contrasting light and dark conditions.You can set up to 24 dynamic privacy zone masks.



ILLUMINATOR

This PTZ explosion-proof camera, thanks to its exceptional imaging performance and built-in lighting, can recognise and identify the object in outdoor areas up to 200m away, even during the night or in poor lighting conditions.

The illuminator LEDs automatically adapt to the zoom factor and uniformly illuminate the line of vision, eliminating hotspots and under-exposure.

Activation of the illuminator can take place via software, based on the surrounding brightness, and also according to preset or zoom, using alarm input or manually.



Features:

  • Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
  • Maximum resistance in corrosive environments
  • Illuminator with lighting distance up to 200m
  • Junction box with integrated SFP slot to allow fiber optic connection
GENERAL
AISI 316L stainless steel construction
External surfaces micro-shot peened and electro-polished
Dynamic positioning control system
MECHANICAL
Cable inputs: 2 x 3/4" NPT
Zero backlash
Horizontal rotation: 360°, continuous rotation
Vertical rotation: from -90° up to +90°
Horizontal speed (variable): from 0.1° to 100°/s
Tilt speed (variable): from 0.1° to 100°/s
Accuracy of preset positions: 0.02°
Integrated wiper
Window with extra clear tempered glass: thick 12mm (0.47in)
Unit weight: 26.5kg (58lb)
ELECTRICAL
Supply voltage/Current consumption:
230Vac ±10%, 0.5A, 50/60Hz
24Vac ±10%, 5A, 50/60Hz
120Vac ±10%, 1A, 50/60Hz
220Vac ±10%, 0.54A, 50/60Hz
100Vac ±10%, 1.2A, 50/60Hz
Power consumption:
120W max
NETWORK
RJ45 port
Ethernet connection: 10BASE-T/100BASE-T
Slot SFP (SMALL FORM FACTOR PLUGGABLE)
Ethernet connection:100BASE-FX
Supply voltage: 3.3V
Standard: MSA compliant
The SFP module (not supplied by VIDEOTEC) must meet the following requirements:
Laser: Class 1, complies with EN60825-1
Certification: UL/IEC 60950-1 or UL/IEC 62368-1
CYBERSECURITY
Digitally signed firmware
Password restricted access (HTTP digest)
Support of various user access levels
Control of accesses IEEE 802.1X
HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
Centralised certificate management
Complies with ONVIF Security Service specifications
CAMERAS
SONY FCB-EV7520 Day/Night Full HD 30x
Resolution: Full HD 1080p (1920x1080)
Image Sensor: 1/2.8" Exmor™ R CMOS sensor
Effective Pixels: approx. 2.13 Megapixels
Minimum Illumination:
Colour: 0.0013lx (50 IRE, High sensitivity on)
B/W: 0.0008lx (30 IRE, High sensitivity on)
Focal length: from 4.3mm (wide) up to 129mm (tele)
Zoom: 30x (360x with digital zoom)
Iris: from F1.6 up to F14 (Auto, Manual)
Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end)
Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
Shutter speed: from 1/1s up to 1/10000s (Auto, Manual)
White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto)
Gain: from 0dB up to 50.0dB (Auto, Manual)
Wide Dynamic Range: 120dB
Focus System: Auto (PTZ Trigger, Full Auto), Manual
Picture Effects: E-flip
Noise removal (2D, 3D): Off, On (from level 1 up to level 5)
Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority)
De-fog: Off, Low, Mid, High
Dynamic masking of privacy zones: maximum 24 masks settable, maximum 8 simultaneously displayable
Indoor Flicker Reduction
Gain Limit: from10.7dB up to 50dB
High sensitivity: On/Off
Backlight Compensation: On/Off
Auto Slowshutter: On/Off
Exposure compensation: Off, On (from -10.5dB up to +10.5dB)
Sharpness: from level 0 up to level 15
High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15)
Digital image stabilization: On/Off
VIDEO
Video encoder
Communication protocol: ONVIF, Profile Q, Profile S and Profile T
Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
Video compression: H.264/AVC, MJPEG, MPEG4
3 independent video streams Full HD
Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps
Selectable frame rate from 1 to 60 images per second (fps)
Web Server
Directional OSD (maximum 4 settable areas)
Motion Detection
Video analytics: VIDEOTEC ANALYTICS (optional)
QoS: Differentiated DSCPs for streaming and device management
SNMP and NTCIP protocols
VIDEO ANALYTICS
Ultra-robust detection algorithms and auto-tracking, specifically for outdoor perimeter control.
Targets Classification: People, vehicles, generic objects
Programmable rules for video analysis, VIDEOTEC ANALYTICS (it is possible to rapidly configure up to ten rules for every preset using an intuitive control management interface)
Line crossing: the target triggers an alarm if it crosses the line in one or both directions
Entering/leaving area: the target triggers an alarm if it leaves or enters the configured area
Appearing in area: the target triggers an alarm if it appears inside the configured area
Loitering: the target triggers an alarm if it stays inside the configured area over the set time
Detection Mask: disables the detection activity in a portion of the image to prevent false alarms
Video Tampering Detection: a specific ONVIF alarm is triggered if the video camera view is obstructed (e.g. spray)
I/O INTERFACE
Input for remote reset: 1
Alarm inputs: 1
Relay outputs: 1+1 (1 relay reserved for washer pump and one configurable, 1A, 30Vac/60Vdc max)
ENVIRONMENT
For indoors and outdoors installation
Certification temperature: from -40°C (-40°F) up to +80°C (+176°F)
Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) (not valid for versions with integrated video analysis, VIDEOTEC ANALYTICS)
De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F)
Wind resistance
PTZ static: 230km/h (143mph) max.
PTZ operational at the maximum speed: 210km/h (130.5mph) max.
Relative humidity: from 5% up to 95%
CERTIFICATIONS
Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4, EN61000-3-2, EN61000-3-3
RoHS (CE): EN50581
Outdoor installation (CE): EN60950-22, IEC60950-22
Vibration test: EN50130-5, EN60068-2-6
UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1, CAN/CSA C22.2 No. 62368-1-14) (not available for 100Vac and 220Vac versions): cULus Listed
Electromagnetic compatibility (North America) (not available for 100Vac and 220Vac versions): FCC part 15 (Class A), ICES-003 (Class A)
IP protection degree (EN/IEC60529): IP66, IP67, IP68, IP69
Level of protection Type (UL50E) (not available for 100Vac and 220Vac versions): 4X, 6P
RCM (Australian and New Zealand Regulatory Compliance Mark)
NDAA-compliant
CERTIFICATIONS - MARINE APPLICATIONS
Lloyd's Register Marine Type Approval certification (with MAXIMUS MBX communication box or with FM1010 filter): Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
Electromagnetic compatibility: EN60945
Salty fog resistance: EN60068-2-52
