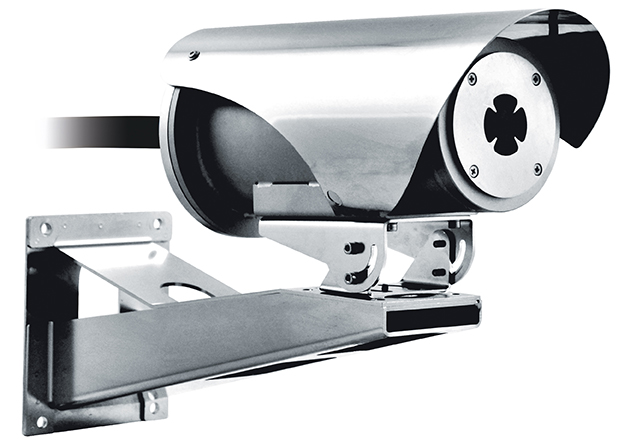

MVXT thermal camera with radiometric functions, in AISI 316L, 12-24Vdc/24Vac, version IP H264/AVC, 35mm, 640x512, 30Hz, armoured cable 4m, sunshield, -60°C/+65°C. ATEX Ex II 2G Ex db IIC T5 Gb, Ex II 2D Ex tb IIIC T100°C Db, -60°C ≤ Ta ≤ +65°C, IP66/68. IECEx Ex db IIC T5 Gb, Ex tb IIIC T100°C Db, -60°C ≤ Tamb ≤ +65°C, IP66/68. EAC Ex Ex II 2G Ex db IIC T5 Gb, Ex II 2D Ex tb IIIC T100°C Db, Ta -60°C/+65°C, IP66/IP68. INMETRO Ex db IIC T5 Gb, Ex tb IIIC T100°C Db, -60°C ≤ Ta ≤ +65°C, IP66/IP68

The explosion-proof camera MAXIMUS MVXT is perfect for efficient and preventive video surveillance and control of processes in hazardous environments where the atmosphere is potentially explosive due to the presence of inflammable gases or dust, typical of the Oil&Gas, marine or industrial sectors. IP-based cameras are also enhanced with radiometric functions that allow temperature detection based on the 4 central pixels of the image. Versions are available on request with advanced radiometry, capable of measuring the temperature of a specific object in any point of the image by defining a specific area. MVXT takes full advantage of all the functionalities and advantages offered by the thermal camera, including the possibility of sending an alarm and enabling immediate actions for the purpose of preventing undesired accidents or intrusions in the protected areas. The housing is compact yet functional and is made entirely out of AISI 316L stainless steel. Its resistance to corrosion is not only guaranteed, but is also enhanced by way of polishing processes. An equally noteworthy point is that the IP66/IP68 ratings guarantee the complete protection against harsh weather and submersion in up to 5 metres of water for 2 hours. Moreover, the IP69 rating allows the device to be cleaned with high pressure water jets.

Features:

Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)
Marine Certification: Lloyd's Register Marine Type Approval
AISI 316L stainless steel construction
External shot peened and electro-polished surfaces
Analogue or IP (ONVIF Profil Q, Profile S, Profile T, ONVIF Thermal Service) versions
Thermal cameras:
- Sensor: Uncooled VOx microbolometer
- Lenses: 9mm, 13mm, 19mm, 25mm, 35mm, 50mm, 60mm
- Resolution: 336x256 or 640x512
1 alarm input and 1 relay output
4m (13ft) / 10m (32.8ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (32.8ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)
Power supply: 12-24Vdc/24Vac
IP66/IP67/IP68/IP69
Radiometry functions available only for IP versions

GENERAL

AISI 316L stainless steel construction
External shot peened and electro-polished surfaces
Silicone O-ring seals
Configuration via OSM

MECHANICAL

Sunshield
Unit weight:
8.5kg (18.7lb) (housing with 4m (13ft) armoured multipolar cable)
12kg (26.5lb) (housing with 10m armoured multipolar cable)

CABLE GLANDS

Cable entry: 1 hole, 3/4", NPT
Cable gland Ex db 3/4"NPT and 4m/10m (13ft/33ft) preinstalled multipolar armoured cable or with 4m/10m (13ft/33ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)

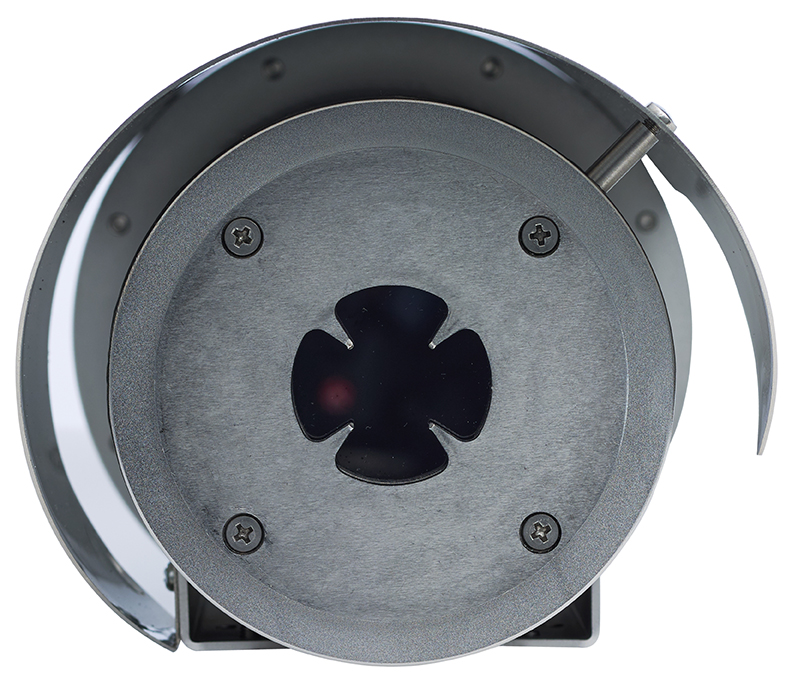

HOUSING'S WINDOW

Germanium window (big grid)
Usable diameter: 57mm (2.2in)
Thick: 10mm (0.4in)
External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
Internal treatment: antireflection
Spectral range: from 7.5μm up to 14μm
Medium transmittance (from 7.5μm up to 11.5μm): 87.3%
Medium transmittance (from 11.5μm up to 14μm): 67.3%
Germanium window (small grid)
Usable diameter: 40mm (1.6in)
Thick: 8mm (0.3in)
External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
Internal treatment: antireflection
Spectral range: from 7.5μm up to 14μm
Medium transmittance (from 7.5μm up to 11.5μm): 87.5%
Medium transmittance (from 11.5μm up to 14μm): 72.1%

ELECTRICAL

Supply voltage/Current consumption (heating switched on, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
24Vac ±10%, 2.2A, 50/60Hz
24Vdc ±5%, 2.2A
12Vdc ±5%, 3.5A
Armoured cable:
external diameter = 20.00 ± 0.50mm (0.79±0.20in)
under armour diameter = 15.20mm (0.60in)
colour: Black RAL9005
Armoured cable composition:
3 x 2.5mm²
7 x 0.34mm²
4 x 2 x 0.22mm² (IP-based version, cat. 5E)
1 x coax 75ohm RG179 (analog version)
Cable tail composition:
3 x 2.5mm², rated external diameter = 8.7mm (0.34in)
7 x 0.34mm², rated external diameter = 6.4mm (0.25in)
4 x 2 x 0.21mm², (IP-based version, cat. 5E), rated external diameter = 6.7mm (0.26in)
1 x coax 75ohm RG59 (analog version), rated external diameter = 4.9mm (0.19in)

NETWORK

Only for the IP versions of the product:
Ethernet connection: 10BASE-T/100BASE-T
Connector: RJ45
Cable length: 100m max

SERIAL COMMUNICATIONS

Only for product analogue versions:
Serial interface
RS-485 line, half-duplex
Cable length: 1200m max
Addressable units: 255 (configuration via OSM)
Serial communication protocol
PANASONIC 850: 9600baud, 19200baud
PELCO D: 2400baud, 9600baud
MACRO: 9600baud, 38400baud

VIDEO

Only for the IP versions of the product:
Video encoder
Communication protocol: ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service
Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
Video compression: H.264/AVC, MJPEG, JPEG, MPEG4
3 independent video streams
Image resolution: from 320x180pixel up to 720x480pixel in 4 steps
Selectable frame rate from 1 to 30 images per second (fps)
Web Server
Motion Detection
QoS: Differentiated DSCPs for streaming and device management
SNMP and NTCIP protocols

I/O INTERFACE

I/O alarm board
Alarm inputs: 1
Relay outputs: 1 (1A, 30Vac/60Vdc max)
Cable length: 200m (656ft) max

CAMERAS

Power consumption (assembly, camera and lens)
Without video encoder IP: 8W
With video encoder IP: 6W
Minimum distance between camera and housing's window: 4mm (0.16in)
Cameras dimensions/Lenses that can be installed (WxHxL)
Without video encoder: 70x65x140mm (2,6x2,5x5,5in)
With video encoder: 70mmx65mmx120mm

ENVIRONMENT

For indoors and outdoors installation
Operating temperature:
Cold start from -40°C (-40°F) up to +65°C (149°F)
Running from -50°C (-58°F) up to +65°C (149°F)
Relative humidity: from 5% up to 95%

CERTIFICATIONS

Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A)
RoHS (CE): EN50581
Outdoor installation (CE): EN60950-22, ICE60950-22
IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69
Vibration test: EN50130-5, EN60068-2-6
UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed
Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
Level of protection Type (UL50E): 4X, 6P

CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS

ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31)
IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31)
EAC EX (TR CU 012/2011)
INMETRO (ABNT NBR IEC 60079-0 + Errata 1, ABNT NBR IEC 60079-1 + Errata 1, ABNT NBR IEC 60079-31)
ETL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31), cable tail versions
ETL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31), cable tail versions

CERTIFICATIONS - MARINE APPLICATIONS

Lloyd's Register Marine Type Approval certification (only if used with the filter accessory FM1010):
Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
Electromagnetic compatibility: EN60945
Salty fog resistance: EN60068-2-52
Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2

ACCESSORIES

MBA1S5A Explosion-proof communication box in aluminium , IN 230 Vac
MBA2S5A Explosion-proof communication box in aluminium , IN 24 Vac
MBA3S5A Explosion-proof communication box in aluminium , IN 120 Vac
OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex ( operating temperature : from -60°C (-76°F) up to +80°C (+176°F) )
FM1010 EMC filter for Marine certification

BRACKETS AND ADAPTORS

NXWBS1 AISI 316L stainless steel wall bracket with joint
MHXWFWCA AISI 316L stainless steel ball joint
NXFWBT AISI 316L stainless steel parapet mounting bracket
NXCOL AISI 316L stainless steel pole adapter module
NXCW AISI 316L stainless steel corner adapter module
NXWTU Wall adaptor module in stainless steel AISI 316L
