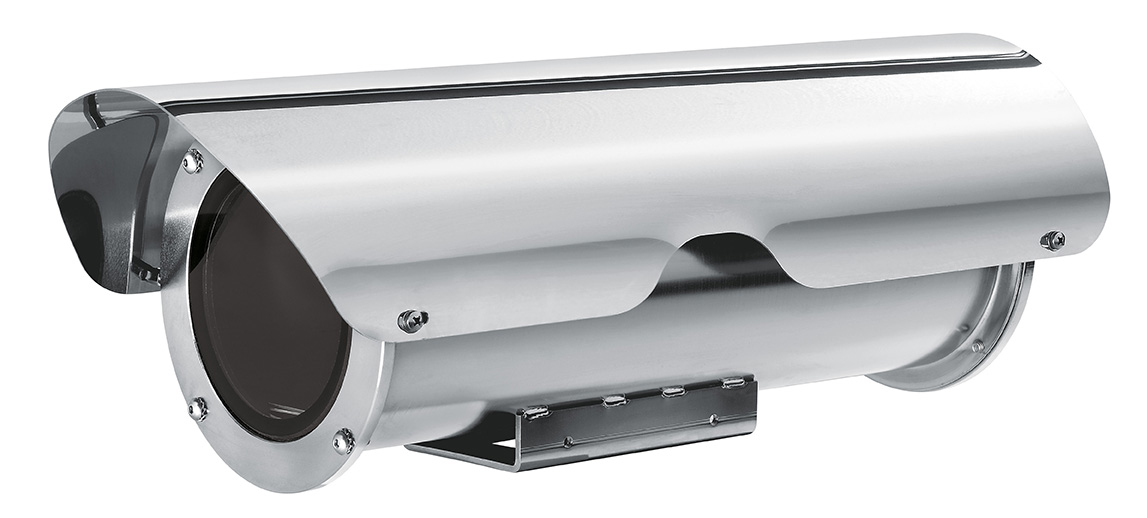

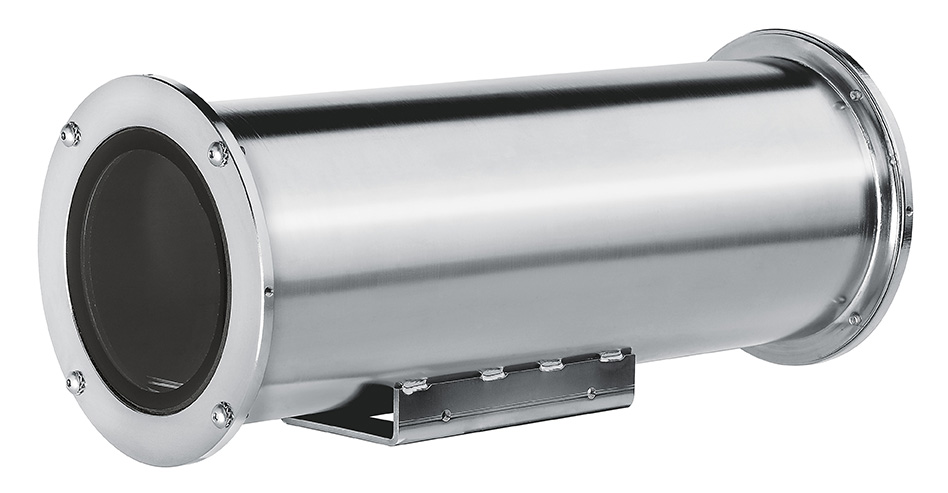

The NXM36 housing has been developed for installations in highly corrosive areas such as industrial chemical, petrochemical, marine, naval and offshore platforms; entirely made from electropolished and passivated AISI 316L stainless steel for maximum protection against deterioration.

The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion. The options of wiper and water pump ensure a constant cleaning of the front window For the coldest environments down to -40°C (-40°F), the range includes a specific version with reinforced heater.

The NXM36 product is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to heat generated by other equipment, docking procedures).

Features:

Made of AISI 316L electropolished stainless steel
Cylindrical body enclosed by two 6mm(0.24in)-thick circular flanges
2 PG13.5 cable glands in nickel-plated brass for external connections
IP66/IP67/IP68/IP69
Marine Certification: Lloyd's Register Marine Type Approval

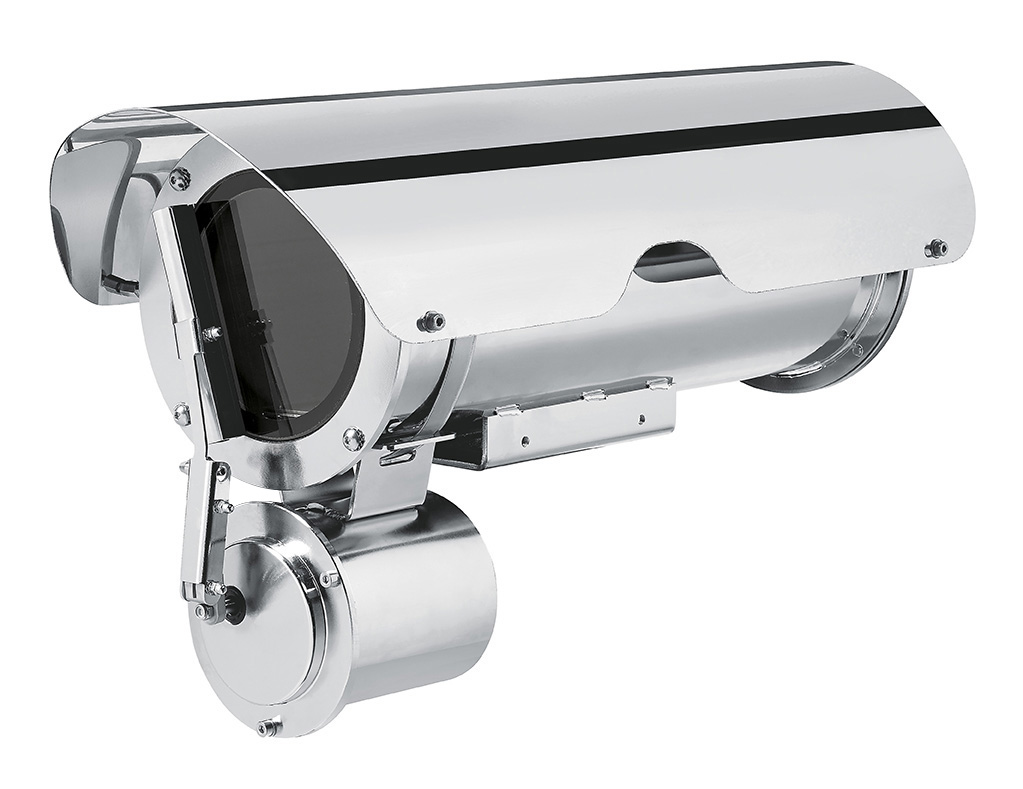

Available accessories: heater and double heater (for temperatures down to -40°C (-40°F), camera power supply, wiper and washer pump

GENERAL

Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat):
AISI 316L
UNI 6900-71: X 2 Cr Ni Mo 17 12 2
DIN 17006: X 2 Cr Ni Mo 17 13 2
N° werkstoff: 1.4404
AFNOR: Z2 CND 17-12
BSI: 316S11
The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:
ISO: 7380
AISI: 316
ISO quality: A4
Resistance class ISO: from 50 to 70

MECHANICAL

Approximate useful internal dimensions:
Standard versions (WxH): 88x86mm (3.5x3.4in)
Dual heating version (WxH): 55x86mm
Internal usable length:
Standard versions: 334mm (13.1in)
Versions with heating and/or power supply: 245mm (9.6in)
External dimensions (ØxL): 154x358mm
Cable glands: 2xPG13.5 (nickel-plated brass for external connections)
Flange thickness: 6mm (0.24in) (front/back)
Gaskets: High sealing O-ring
Housing window
Material: Tempered extra clear glass
Usable diameter: 97mm (3.8in)
Thick: 4mm (0.16in)
Unit weight: 5kg (11lb)

ELECTRICAL

Standard version

Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
12Vdc, 1.6A max
24Vac, 0.85A max, 50/60Hz
120Vac, 0.35A max, 50/60Hz
230Vac, 0.18A max, 50/60Hz

Version with double heater

Supply voltage/Current consumption (version with double heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
120Vac, 0.7A max, 50/60Hz
230Vac, 0.35A max, 50/60Hz

ENVIRONMENT

For indoors and outdoors installation
Submersible: up to -40m (-130ft) (pressure: 4bar)
Operating temperature (with heater): from -20°C (-4°F) up to +60°C (140°F)
Operating temperature (with double heater): from -40°C (-40°F) up to +60°C (140°F)
Relative humidity: from 5% up to 95%

CERTIFICATIONS

Electrical safety (CE): EN60950-1, EN62368-1
Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
IP protection degree (EN60529): IP66, IP67, IP68, IP69
EAC certification

CERTIFICATIONS - MARINE APPLICATIONS

Lloyd's Register Marine Type Approval certification:
Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
Electromagnetic compatibility: EN60945
Salty fog resistance: EN60068-2-52
Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2

Name

Description

Size

Downloads

File

Datasheet

0.6mb

accessories
