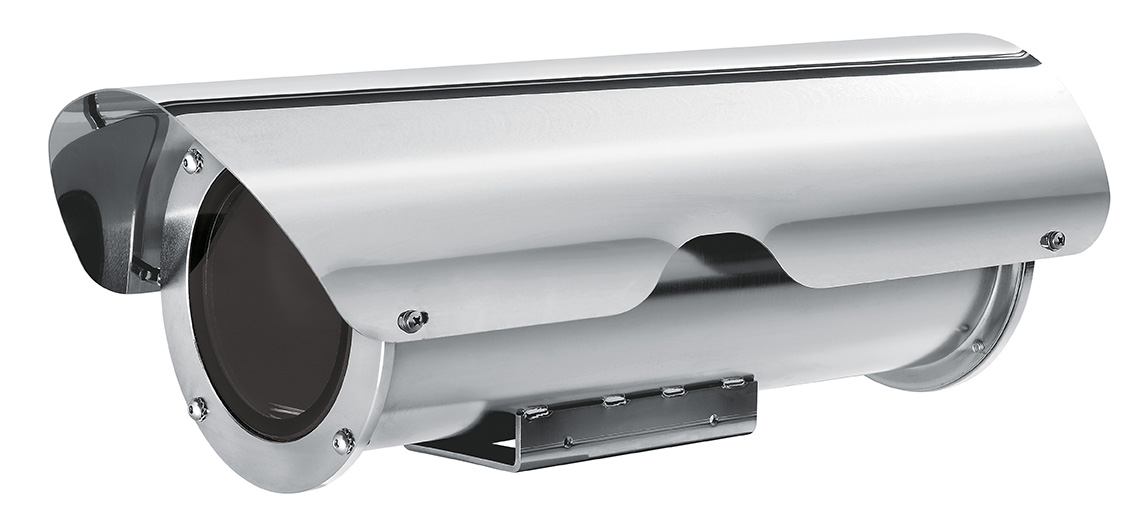

VideoTec - NXM36K1050 - NXM36 Camera Housing 360mm for Installation in Aggressive Environments with Sunshield and Double Heating 120Vac/230Vac, 80W
Part number:
NXM36K1050
Price:
The NXM36 housing has been developed for installations in highly corrosive areas such as industrial chemical, petrochemical, marine, naval and offshore platforms; entirely made from electropolished and passivated AISI 316L stainless steel for maximum protection against deterioration.

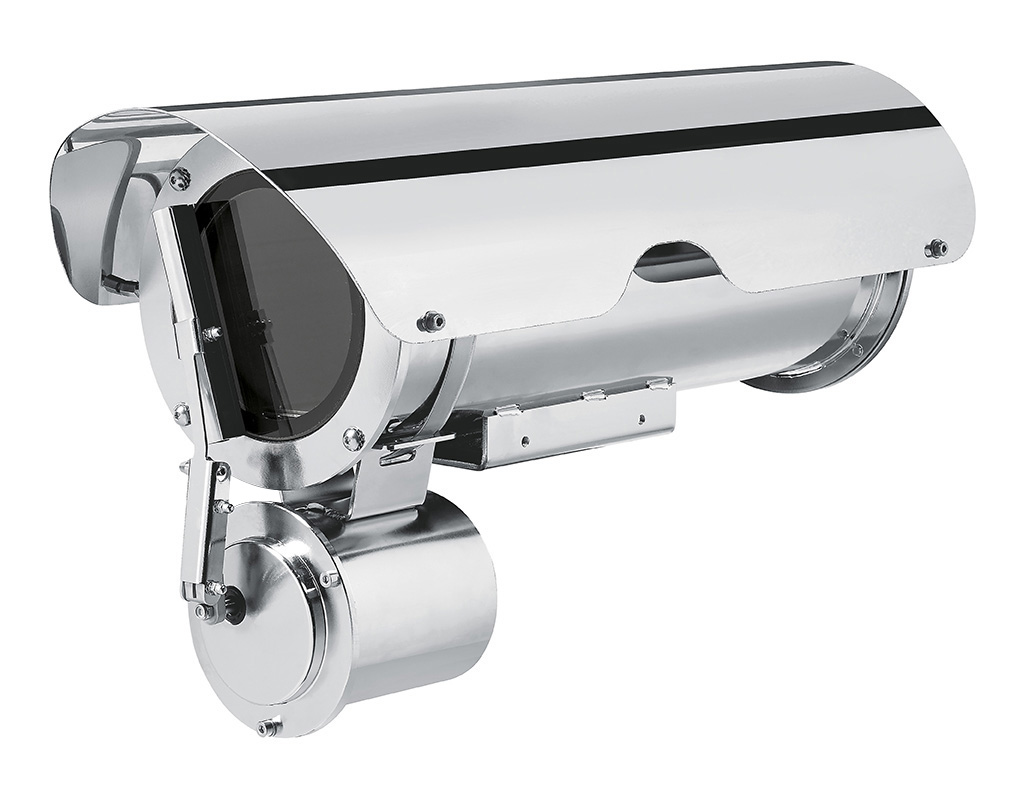

The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion. The options of wiper and water pump ensure a constant cleaning of the front window For the coldest environments down to -40°C (-40°F), the range includes a specific version with reinforced heater.
The NXM36 product is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to heat generated by other equipment, docking procedures).
Features:
- Made of AISI 316L electropolished stainless steel

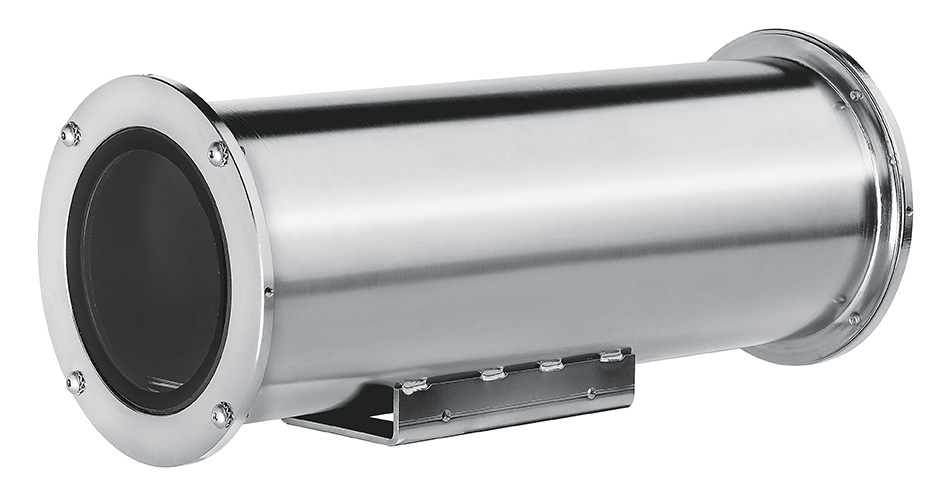

- Cylindrical body enclosed by two 6mm(0.24in)-thick circular flanges
- 2 PG13.5 cable glands in nickel-plated brass for external connections
- IP66/IP67/IP68/IP69
- Marine Certification: Lloyd's Register Marine Type Approval
- Available accessories: heater and double heater (for temperatures down to -40°C (-40°F), camera power supply, wiper and washer pump
| GENERAL |
| Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat): |
| AISI 316L |
| UNI 6900-71: X 2 Cr Ni Mo 17 12 2 |
| DIN 17006: X 2 Cr Ni Mo 17 13 2 |
| N° werkstoff: 1.4404 |
| AFNOR: Z2 CND 17-12 |
| BSI: 316S11 |
| The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards: |
| ISO: 7380 |
| AISI: 316 |
| ISO quality: A4 |
| Resistance class ISO: from 50 to 70 |
| MECHANICAL |
| Approximate useful internal dimensions: |
| Standard versions (WxH): 88x86mm (3.5x3.4in) |
| Dual heating version (WxH): 55x86mm |
| Internal usable length: |
| Standard versions: 334mm (13.1in) |
| Versions with heating and/or power supply: 245mm (9.6in) |
| External dimensions (ØxL): 154x358mm |
| Cable glands: 2xPG13.5 (nickel-plated brass for external connections) |
| Flange thickness: 6mm (0.24in) (front/back) |
| Gaskets: High sealing O-ring |
| Housing window |
| Material: Tempered extra clear glass |
| Usable diameter: 97mm (3.8in) |
| Thick: 4mm (0.16in) |
| Unit weight: 5kg (11lb) |
| ELECTRICAL |
| Standard version |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| 12Vdc, 1.6A max |
| 24Vac, 0.85A max, 50/60Hz |
| 120Vac, 0.35A max, 50/60Hz |
| 230Vac, 0.18A max, 50/60Hz |
| Version with double heater |
| Supply voltage/Current consumption (version with double heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| 120Vac, 0.7A max, 50/60Hz |
| 230Vac, 0.35A max, 50/60Hz |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Submersible: up to -40m (-130ft) (pressure: 4bar) |
| Operating temperature (with heater): from -20°C (-4°F) up to +60°C (140°F) |
| Operating temperature (with double heater): from -40°C (-40°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, EN62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree (EN60529): IP66, IP67, IP68, IP69 |
| EAC certification |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification: |
| Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
