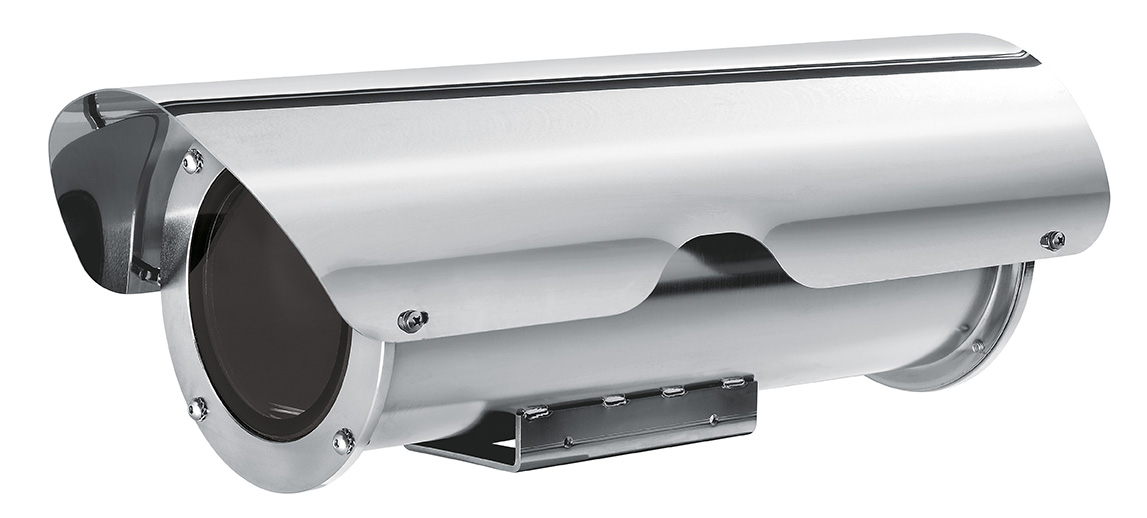

VideoTec - NXM36K2700 - NXM36 HI-POE Housing for IP Cameras for Installation in Aggressive Environments with Sunshield
Part number:
NXM36K2700
Price:

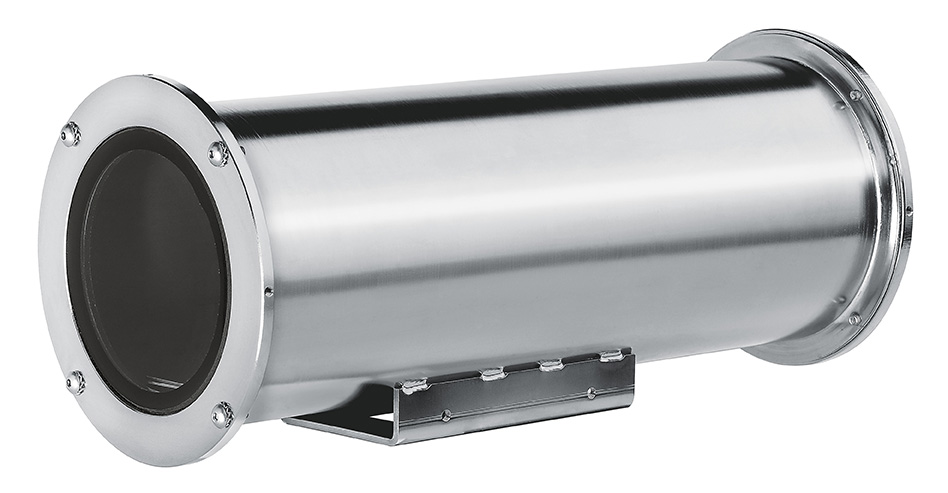

The NXM36 Hi-PoE housing has been developed for installations in highly corrosive areas such as industrial chemical, petrochemical, marine, naval and offshore platforms. Entirely made from electropolished and passivated AISI 316L stainless steel for maximum protection against deterioration.
The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion.

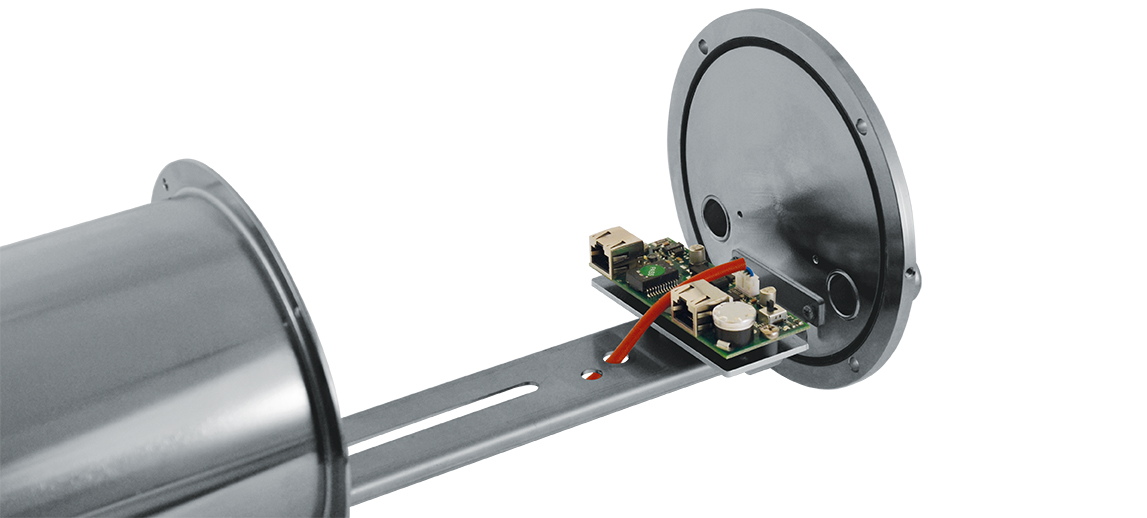

The NXM36 Hi-PoE housing exploits the PoE and Hi-PoE technology in an optimal way, using the power provided by the Ethernet cable as the sole source of electricity to power the network camera along with heating/demisting.
NXM36 Hi-PoE provides high reliability and flexibility of the network installation and simplifies installation operations with important cost reduction. NXM36 Hi-PoE can be configured via a dip switch according to the PoE or Hi-PoE standards depending to the system requirements. The accessories of wiper and water pump ensure a constant cleaning of the front window.
Features:
- Made of AISI 316L electropolished stainless steel
- PoE/Hi-PoE to power heater & network camera
- Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
- IP66/IP67/IP68/IP69
- Cylindrical body enclosed by two 6mm(0.24in)-thick circular flanges
- 2 PG13.5 cable glands in nickel-plated brass for external connections
| GENERAL |
| Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat): |
| AISI 316L |
| UNI 6900-71: X 2 Cr Ni Mo 17 12 2 |
| DIN 17006: X 2 Cr Ni Mo 17 13 2 |
| N° werkstoff: 1.4404 |
| AFNOR: Z2 CND 17-12 |
| BSI: 316S11 |
| The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards: |
| ISO: 7380 |
| AISI: 316 |
| ISO quality: A4 |
| Resistance class ISO: from 50 to 70 |
| MECHANICAL |
| Approximate useful internal dimensions (WxH): 88x86mm (near the glass: 88x75mm) |
| Internal usable length: 210mm (8.3in) |
| External dimensions (ØxL): 154x358mm |
| Cable glands: 2xPG13.5 (nickel-plated brass for external connections) |
| Flange thickness: 6mm (0.24in) (front/back) |
| Gaskets: High sealing O-ring |
| Housing window |
| Material: Tempered extra clear glass |
| Usable diameter: 97mm (3.8in) |
| Thick: 4mm (0.16in) |
| Unit weight: 5kg (11lb) |
| HOUSING'S WINDOW |
| Window with extra clear tempered glass |
| Usable diameter: 97mm (3.8in) |
| Thick: 4mm (0.16in) |
| ELECTRICAL |
| Power absorbed in input/Available power for camera (selectable with dip-switch) |
| PoE input Class 3 (13W): PoE camera Class 2 (7W) |
| Hi-PoE input Class 4 (25W): PoE camera Class 3 (13W) |
| Data line: 10/100Base-T |
| Heater |
| PoE input Class 3: 3W, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F) |
| Hi-PoE input Class 4: 7W, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F) |
| Demisting: 1W |
| Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Submersible: up to -40m (-130ft) (pressure: 4bar) |
| Operating temperature: from -20°C (-4°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60065, EN62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree (EN60529): IP66, IP67, IP68, IP69 |
| EAC certification |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification : |
| Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
