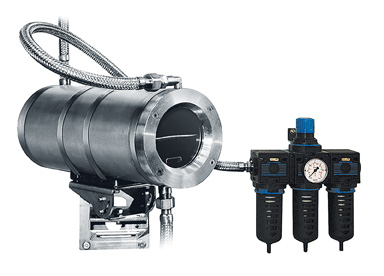

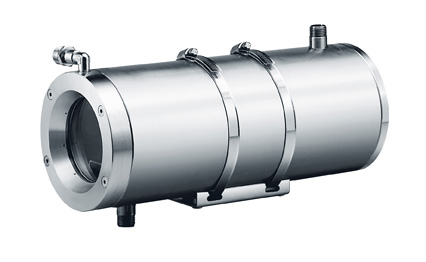

VideoTec - NXW0K1025 - Liquid-Cooled Camera Housing with Air Barrier and IR-Proof Glass
Part number:
NXW0K1025
Price:
The solid construction of this housing makes it suitable for heavy-duty applications, such as the surveillance of ovens, foundries and other high-temperature environments.
Features:
- For industrial installations with high-temperatures in corrosive environments
- For temperatures up to 400°C (752°F)
- Made of AISI 316L electropolished stainless steel
- Supplied air barrier
- 2 PG13.5 cable glands nickel-plated brass for external connections
| GENERAL |
| Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat): |
| AISI 316L |
| UNI 6900-71: X 2 Cr Ni Mo 17 12 2 |
| DIN 17006: X 2 Cr Ni Mo 17 13 2 |
| N° werkstoff: 1.4404 |
| AFNOR: Z2 CND 17-12 |
| BSI: 316S11 |
| The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards: |
| ISO: 7380 |
| AISI: 316 |
| ISO quality: A4 |
| Resistance class ISO: from 50 to 70 |
| MECHANICAL |
| External body polishing |
| Dimensions (ØxL): 154x375mm (6x14.8in) |
| Internal usable area (WxH): 78x78mm (3.1x 3.1in) |
| Internal usable length: 345mm (13.6in) |
| Internal usable length (with power supply): 223mm (8.8in) |
| 2x1/2”GAS connectors for liquid input / output |
| The flange with air barrier is equipped with a 1/4”Gas thread joint and a reduction from 1/2”Gas to 1/4”Gas. |
| Gaskets: O-ring |
| Flange thickness (back) : 9mm (0.35in) |
| Cable glands: 2xPG13.5 (nickel-plated brass) |
| Cooling liquid (application example with incoming water at 20°C (68°F) temperature): |
| ambient temperature 200°C (392°F), water capacity 2l/min, temperature inside housing 32°C (89.6°F) |
| ambient temperature 300°C (572°F), water capacity 2.2l/min, temperature inside housing 41°C (105.8°F) |
| ambient temperature 400°C (752°F), water capacity 6.5l/min, temperature inside housing 44°C (111.2°F) |
| Cooling Air (Application example with incoming air at 17°C(62°F) and an environmental temperature at 80°C(176°F)): |
| with pressure 1bar, air capacity 10m³/h, temperature inside housing 45°C (113°F) |
| with pressure 2bar, air capacity 15m³/h, temperature inside housing 35°C (95°F) |
| Air barrier (Flange with 8 holes) |
| Male input 1/2” GAS |
| System pressure: 4bar max |
| Recommended minimum pressure: 2bar |
| Air barrier (Flange with 32 holes) |
| Male input 1/2” GAS |
| System pressure: 6bar max |
| Recommended minimum pressure: 2bar |
| Unit weight: 10.2kg (22lb) |
| HOUSING'S WINDOW |
| Usable diameter: 95mm (3.7in) |
| Tempered extra clear glass |
| Thick: 6mm (0.24in) |
| Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max |
| Quartz glass |
| Thick: 6mm (0.24in) |
| Operating temperature: 400°C (752°F) max, thermal gradient 220°C (428°F) max |
| IR-proof glass |
| Thick: 6.6mm (0.3in) |
| Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max |
| ELECTRICAL |
| Camera power supply |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50/60Hz - OUT 24Vac, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Maximum working temperature (with water cooling): |
| with tempered glass 260°C (500°F) max |
| with quartz glass 400°C (752°F) max |
| with IR-proof glass 260°C (500°F) max |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60065, EN62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree: EN60529, IP66/IP67 |
| EAC certification |
