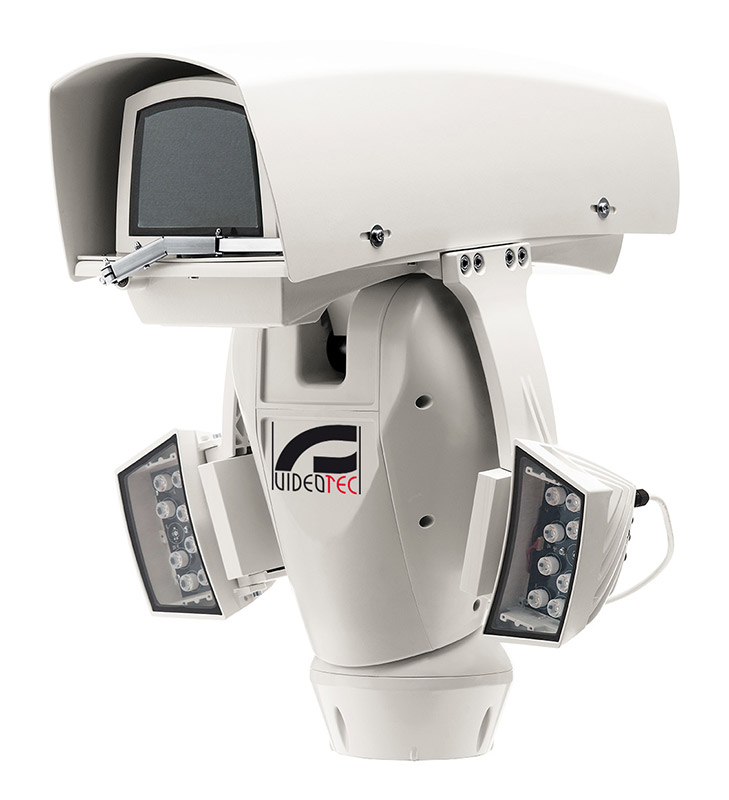

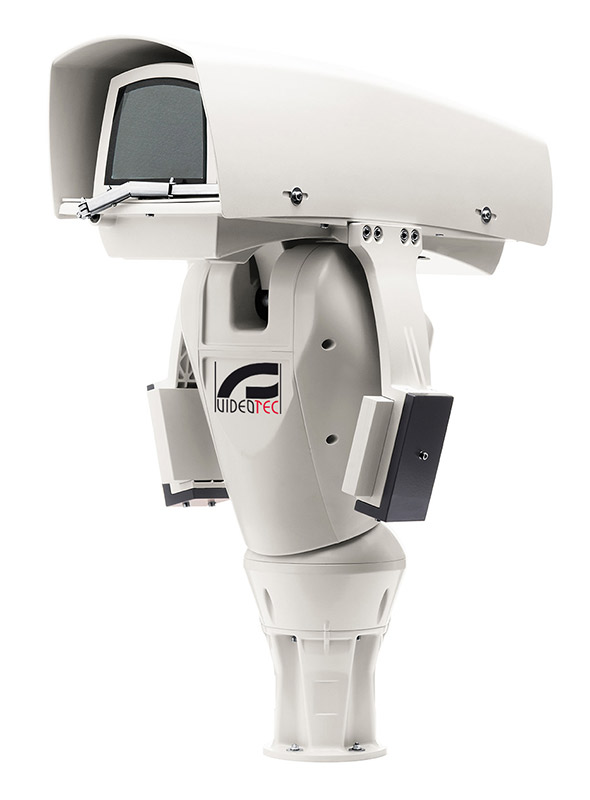

VideoTec - UPK1PEWAN00B - ULISSE RADICAL PTZ, 230Vac, Day/Night camera Full HD 60fps, 1/2.8”, zoom 33x, with Thermal Compensation and Visible Cut Filter, wiper
Part number:
UPK1PEWAN00B
Price:
ULISSE RADICAL is the first PTZ Full HD Videotec network system ready for use that integrates exceptional lens and pre-configured camera combinations, Full HD 1080p, 60fps and CMOS 1/2.8" sensors, for night and day broadcast quality video in extensive outdoor areas.
Features:
- PTZ unit with factory-assembled and pre-configured camera and 500mm lens
- Minimum Illumination, Colour (ICR-OFF):
- Minimum Illumination, B/W (ICR-ON):
- IR corrected lens
- Advanced Autofocus system
- Thermal Compensation System and Visibile Cut Filter
- Pre-wired camera and lens through snap-on connector for easy installation and maintenance
- Horizontal continuous rotation
- Optical sensors for absolute positioning feedback
- Position accuracy: 0.02°
- Up to 250 Presets
| GENERAL |
| Top mount (OTT) |
| Transmission through toothed belt |
| Slip-ring |
| Electronic limit switches |
| Zero backlash |
| Optical sensors for absolute positioning feedback |
| Integrated wiper |
| Pre-installed camera and lens |
| MECHANICAL |
| Constructed from aluminium and tecnopolymer |
| Epoxypolyester powder painting, RAL9002 colour |
| Horizontal rotation: 360°, continuous rotation |
| Zoom 33x: |
| Vertical rotation: from -20° up to +45° |
| Horizontal speed (variable): from 0.02°/s up to 20°/s |
| Tilt speed (variable): from 0.02°/s up to 20°/s |
| Accuracy of preset positions: 0.02° |
| Cable glands: 3xM16 |
| Unit weight: 30kg (66lb) |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac, 0.4A, 50/60Hz |
| 120Vac, 0.8A, 50/60Hz |
| 24Vac, 4A (8A with LED illuminators), 50/60Hz |
| Power consumption (illuminators off): |
| 24W, P&T static (stand-by), heating switched off |
| 100W, P&T in motion, heating switched on |
| Power consumption (illuminators on): |
| 150W, P&T in motion, heating switched on, illuminators to minimum power |
| 190W, P&T in motion, heating switched on, illuminators to maximum power |
| 4 self-powered alarm inputs |
| 2 dry contacts: 30Vdc max or 30Vac, @ 1A |
| NETWORK |
| Connector: RJ45, 10BASE-T/100BASE-T |
| Protocol: ONVIF, Profile S (TCP/IPv4, UDP/IPv4, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, RTSP, RTCP, RTP) |
| VIDEO |
| Compression: H.264/AVC, JPEG |
| Multiple video stream capability: up to 3 independent streams and up to 20 simultaneous clients |
| Resolution: 1920x1080, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, 352x288, 320x184 |
| Range of Bitrate setting: 64 kbps to 32 Mbps |
| Selectable frame rate from 1 to 60 images per second (fps) |
| CAMERAS |
| Day/Night Full HD, 60fps, CMOS 1/1.9" sensor |
| Effective Pixels: 2.38 Megapixel |
| Minimum Illumination Zoom 18x, Colour (ICR-OFF): |
| 0.08lx, 50 IRE F2.5, 1/30s |
| Minimum Illumination Zoom 18x, B/W (ICR-ON): |
| 0.06lx, 50 IRE F2.5, 1/30s |
| Minimum Illumination Zoom 33x, Colour (ICR-OFF): |
| 0.1lx, 50 IRE F3.0, 1/30s |
| Minimum Illumination Zoom 33x, B/W (ICR-ON): |
| 0.07lx, 50 IRE F3.0, 1/30s |
| Zoom 18x: |
| Horizontal Viewing Angle: from 40.6° (wide end) up to 2.4° (tele end) |
| Vertical Viewing Angle: from 30.8° (wide end) up to 1.8° (tele end) |
| Zoom 33x: |
| Horizontal Viewing Angle: from 23.42° (wide end) up to 0.74° (tele end) |
| Vertical Viewing Angle: from 17.74° (wide end) up to 0.55° (tele end) |
| S/N Ratio: more than 50 dB |
| WDR (wide dynamic range): 90dB |
| Shutter speed: 1/1 to 1/10,000 s |
| Exposure Control: Exposure compensation, AGC, Shutter speed, Iris |
| White balance: ATW, ATW PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, Open Push WB, Manual |
| Wide-D: View-DR |
| Tone correction: Visibility enhancer |
| Noise reduction: XDNR |
| LENSES |
| Zoom 33x, 15.2-500mm (0.6-19.7in), F3.0 (Thermal compensation system and Visible Cut Filter) |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature |
| Continuous working: from -40°C (-40°F) up to +60°C (140°F) |
| Non continuous working (absolute maximum temperature for short periods): +65°C (149°F) |
| Cold start (33x lenses): -30°C (-22°F ) |
| Surge immunity: up to 2kV line to line, up to 4kV line to earth (Class 4) |
| Relative humidity: from 10% up to 95% (no condensation) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-4, EN55022 (Class A), FCC Part 15 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Photobiological safety (CE): EN62471 (LED illuminators) |
| IP protection degree: EN60529, IP66 |
| Salty fog resistance: EN50130-5, EN60068-2-52 |
| EAC certification |
| NDAA-compliant |
