VideoTec - NTM36K2000 - Housing for Thermal Cameras in Hostile Environments (Heater 12Vdc/24Vac)
Part number:
NTM36K2000
Price:

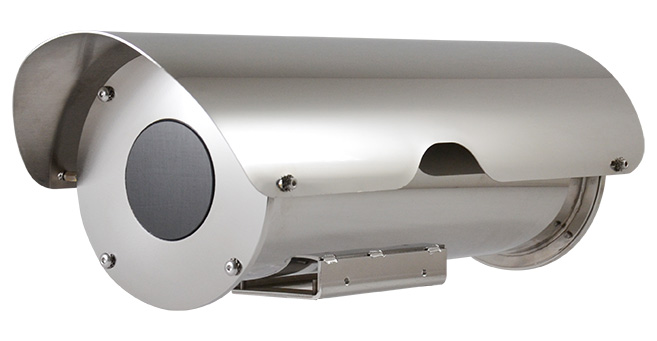

This housing for thermal camera provides the vision also in complete darkness, fog, rain, smoke or for long-range distances.
The germanium window has non-scratch treated, Hard Carbon Coating (DLC) on the outside and antireflection inside; the spectral range is from 7.5μm to 14μm.
The AISI 316L stainless steel construction allows the installation in environments with highly corrosive external agents, such as marine, industrial or chemical environments.
Features:
- Made of AISI 316L stainless steel to withstand the most hostile outdoor environments
- Cylindrical body enclosed by two 9mm(0.4in)-thick circular flanges
- 2 PG13.5 cable glands in nickel-plated brass for external connections
| GENERAL |
| Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat): |
| AISI 316L |
| UNI 6900-71: X 2 Cr Ni Mo 17 12 2 |
| DIN 17006: X 2 Cr Ni Mo 17 13 2 |
| N° werkstoff: 1.4404 |
| AFNOR: Z2 CND 17-12 |
| BSI: 316S11 |
| The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards: |
| ISO: 7380 |
| AISI: 316 |
| ISO quality: A4 |
| Resistance class ISO: from 50 to 70 |
| MECHANICAL |
| Approximate useful internal dimensions: |
| Standard versions (WxH): 88x86mm (3.5x3.4in) |
| Internal usable length: |
| Standard versions: 334mm (13.1in) |
| Versions with heating and/or power supply: 245mm (9.6in) |
| External dimensions (ØxL): 154x358mm (6.1x14.1in) |
| Cable glands: 2xPG13.5 (nickel-plated brass for external connections) |
| Flange thickness: 6mm (0.24in) (front/back) |
| Gaskets: High sealing O-ring |
| Unit weight: 6kg (13.3lb) |
| HOUSING'S WINDOW |
| Germanium window: |
| Usable diameter: 55mm (2.1in) |
| Thick: 2mm (0.08in) |
| External treatment: antiscratch (Hard Carbon Coating- DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 90% |
| Medium transmittance (from 11.5μm up to 14μm): 77% |
| ELECTRICAL |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| 12Vdc, 1.6A max |
| 24Vac, 0.85A max, 50/60Hz |
| 120Vac, 0.35A max, 50/60Hz |
| 230Vac, 0.18A max, 50/60Hz |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Submersible: up to -40m (-130ft) (pressure: 4bar) |
| Operating temperature (standard version, with heater): from -20°C (-4°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, EN62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree (EN60529): IP66, IP67, IP68, IP69 |
| EAC certification |
