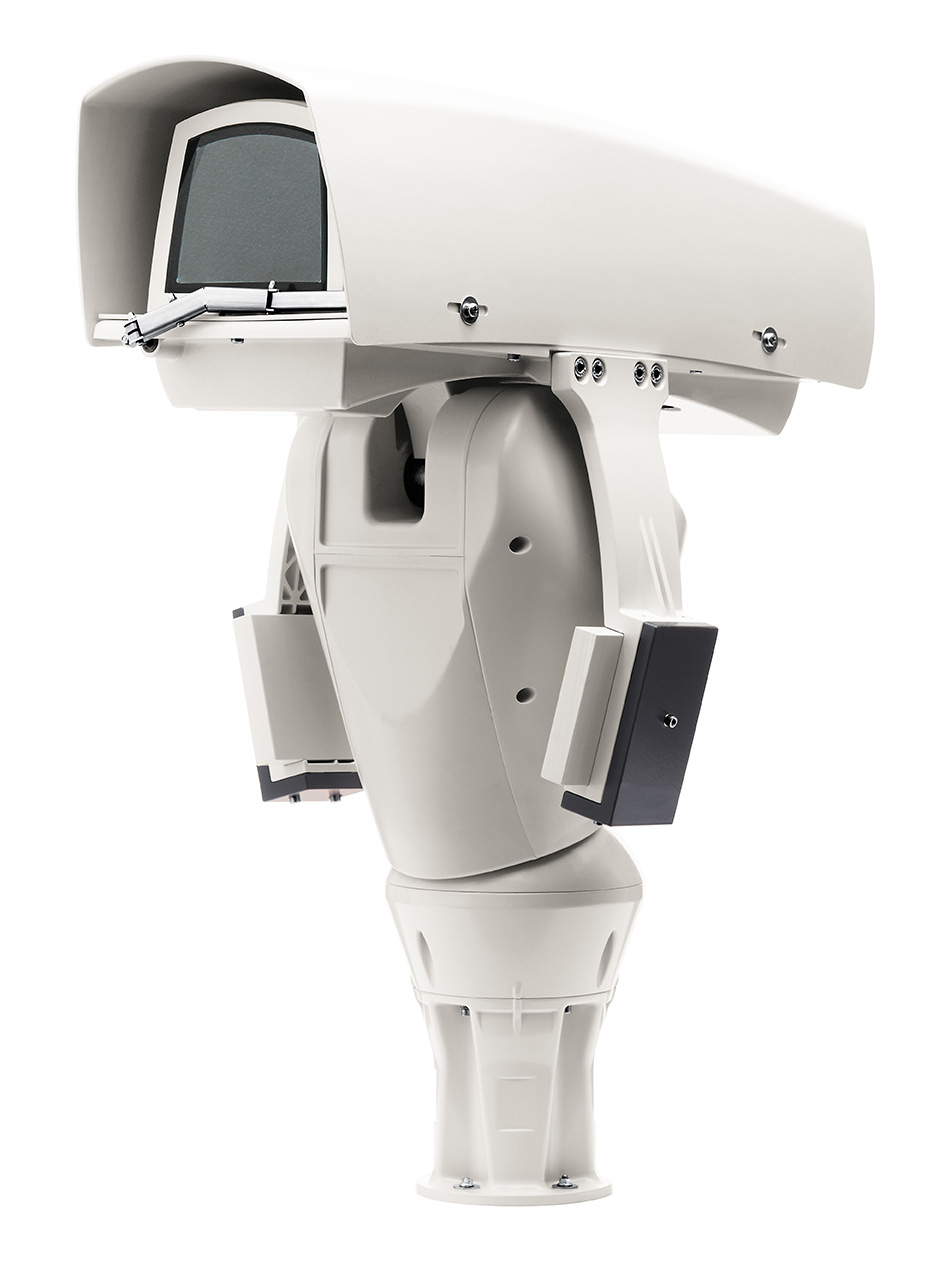

ULISSE MAXI is a robust and efficient PTZ camera unit designed to ensure dynamic, non-stop surveillance of large outdoor areas whilst withstanding harsh weather conditions..

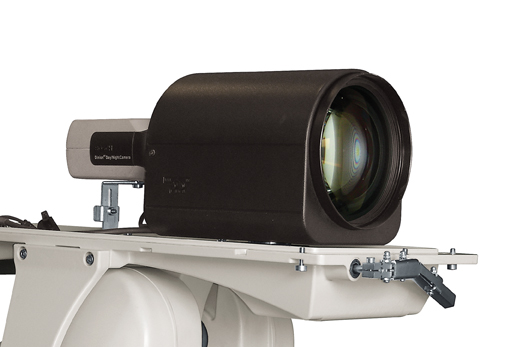

This model can house and manage the largest motorised lenses on the market, taking a total weight of up to almost 8 kilos.

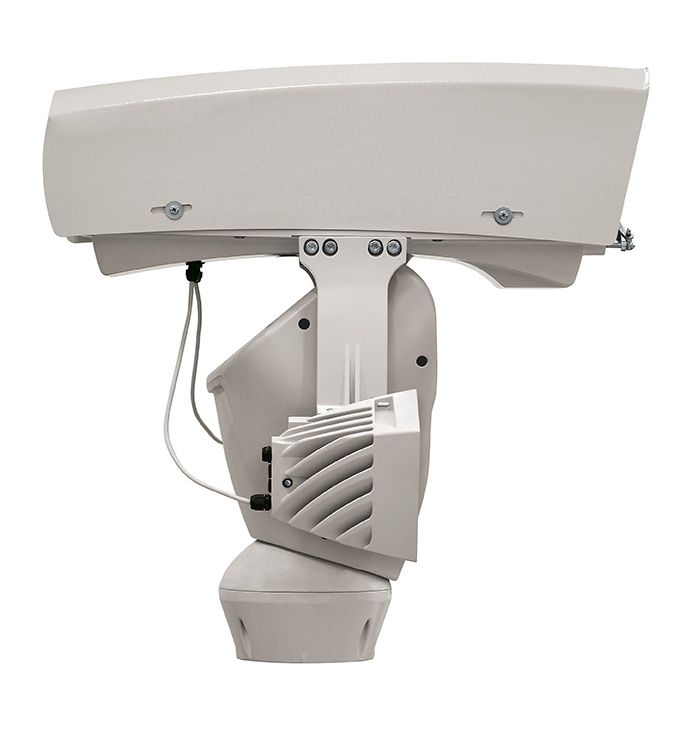

This way a single unit can provide a 360° coverage of the area to be monitored. To ensure detailed images even during the night hours, versions are available with LED illuminators, with infrared light or white light.
The sturdy mechanical structure and the powerful motors of this PTZ are designed to guarantee maximum resistance to high operating stress, vibrations and temperatures between -10°C to +60°C.
The unit is equipped with optical sensors which ensure the accurate control of the position in any condition of use.
The unit is equipped with a wiper for removing rain and dust from the front glass; there is a wide selection of jerry cans with washer pump, different capacities and heads. Models are available for vision with a thermal camera.
Features:
- Optical sensors for absolute positioning feedback
- Germanium window for thermal cameras
- LED illuminators
- Wiper
- Operating temperature: from -10°C (14°F) up to +60°C (140°F)
| GENERAL |
| Top mount (OTT) |
| Electronic limit switches |
| Zero backlash |
| Max weight camera+lens: 7.6kg (17lb) |
| Optical sensors for absolute positioning feedback |
| Maximum number of presets: 250 (VIDEOTEC MACRO) |
| 15 characters string for Area and Preset titling |
| Configuration through OSM |
| Addressable up to 255 units through DIP-switch |
| MECHANICAL |
| Constructed from aluminium and tecnopolymer |
| Epoxypolyester powder painting, RAL9002 colour |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -20° up to +45° |
| Horizontal speed (variable): from 0.02°/s up to 20°/s |
| Tilt speed (variable): from 0.02°/s up to 20°/s |
| Transmission through toothed belt |
| Accuracy of preset positions: 0.02° |
| Internal usable area: See drawings |
| Cable glands: 3xM16 |
| Unit weight: 30kg (66lb) |
| HOUSING'S WINDOW |
| Glass window extra clear |
| Dimensions: 112mm (4.4in)x95mm (3.7in) |
| Germanium window |
| Usable diameter: 70mm (2.8in) |
| Thick: 2mm (0.08in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 90% |
| Medium transmittance (from 11.5μm up to 14μm): 77% |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac, 0.4A, 50/60Hz |
| 24Vac, 4A (8A with LED illuminators), 50/60Hz |
| 120Vac, 0.8A, 50/60Hz |
| Power consumption: |
| 100W |
| 150-190W max with LED illuminators in 24Vac |
| 24W, P&T static, heating switched off |
| Camera power supply: 12Vdc, 800mA |
| Cables input section: |
| 0.75mm² (18AWG), 120Vac or 230Vac |
| 1.5mm² (16AWG), 24Vac |
| Cables signal section: from 0.14mm² (26AWG) up to 0.5mm² (20AWG) |
| SERIAL COMMUNICATIONS |
| RS-232 interface for firmware update |
| 2-ports RS-485 for daisy chain configuration |
| Configuration of telemetry protocol parameters via DIP-switch |
| Protocols supported: |
| AMERICAN DYNAMICS |
| PANASONIC |
| PELCO D |
| MACRO |
| VISTA |
| VIDEO |
| Video line: coaxial cable (1Vpp, 75Ohm) |
| I/O INTERFACE |
| Alarm input: |
| 4 (standard version) |
| 2 (version with LED illuminators) |
| Control voltage: From 10Vdc up to 35Vdc |
| Dry contacts: |
| 2 (standard version) |
| 1 (version with LED illuminators) |
| Applicable voltage: 50Vdc max or 30Vac @ 1A |
| LENSES |
| Power supply: From 6Vdc up to 15Vdc, 200mA max |
| Control: Polarity inversion and common wire |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature (with heater): from -10°C (14°F) up to +60°C (140°F) |
| Relative humidity: from 10% up to 95% (no condensation) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, EN62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class B), FCC Part 15 (Class B) |
| Outdoor installation (CE): EN60950-22 |
| IP protection degree (EN60529): |
| IP66 |
| Salty fog resistance: EN50130-5, EN60068-2-52 |
| EAC certification |
