VideoTec - UPT3NVSA000E - ULISSE 120Vac, 36x Day/Night camera, NTSC
Part number:
UPT3NVSA000E
Price:

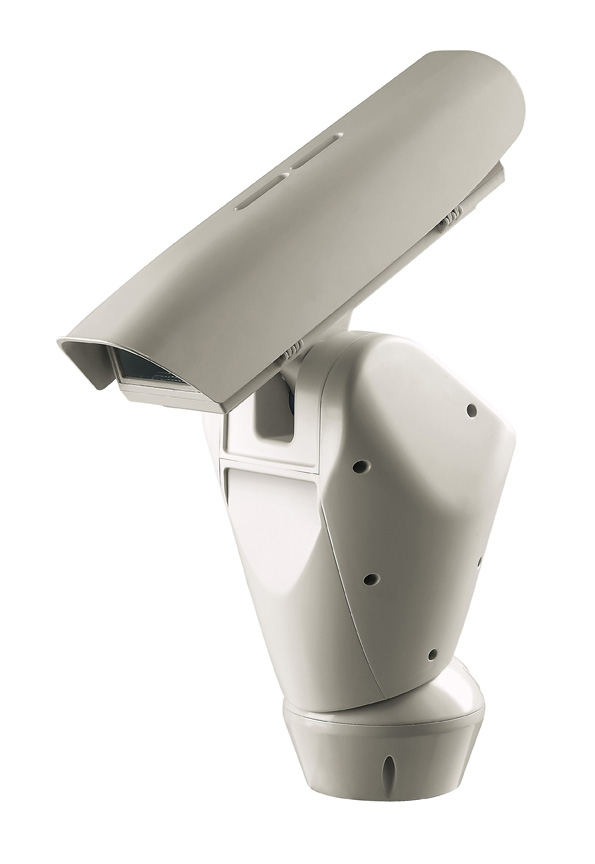

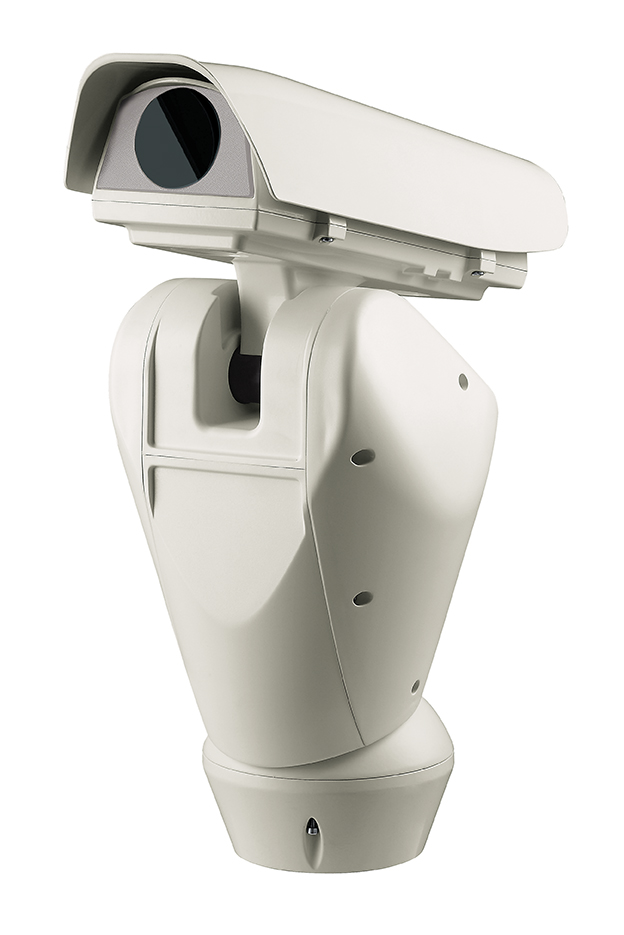

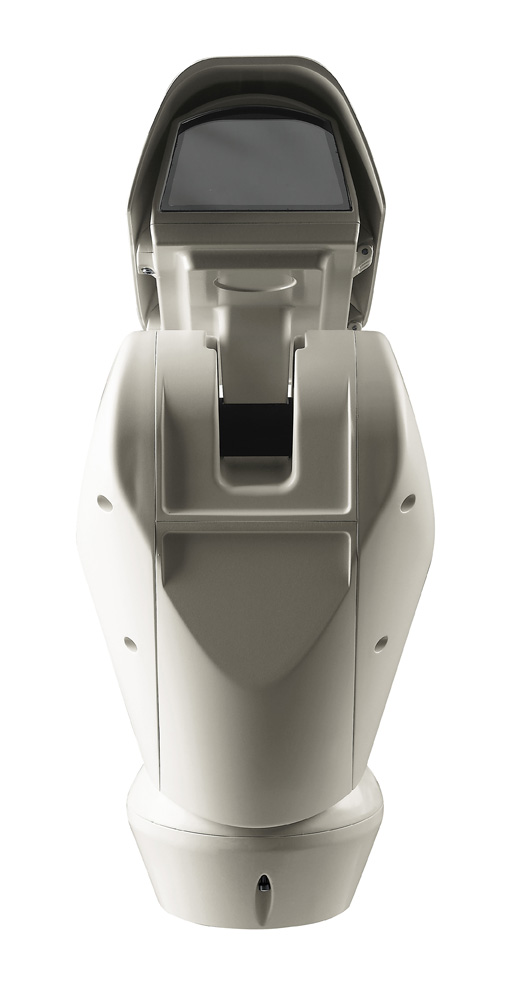

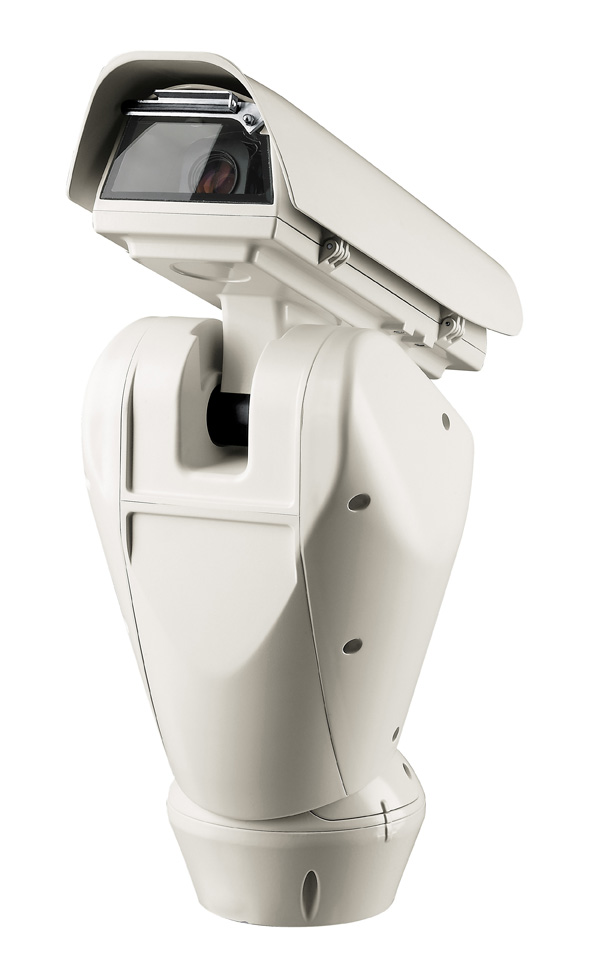

ULISSE PTZ camera unit ensures maximum video surveillance coverage in all outdoor environments, even the most difficult. The accurate top-mount configuration guarantees long-range vision and continuous horizontal axis rotation, combining high speed with absolute tracking accuracy, both in manual mode and in patrol mode.
ULISSE PTZ camera unit ensures maximum video surveillance coverage in all outdoor environments, even the most difficult. This model can contain cameras with compact lenses.

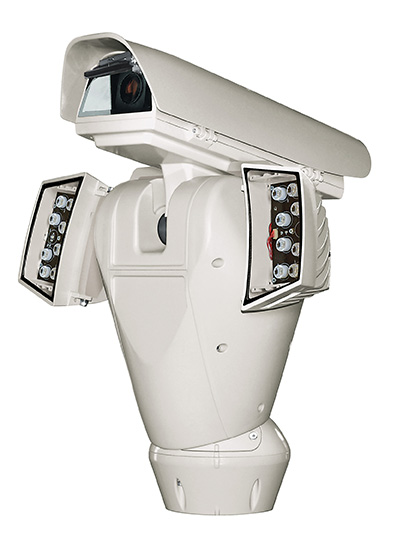

To ensure detailed images even during the night hours, versions are available with LED illuminators, with infrared light or white light.
The PTZ unit can be equipped with a wiper for removing rain and dust from the front glass; there is a wide selection of jerry cans with washer pump, different capacities and delivery heads.
Features:
- Versions without camera for customized combinations of camera/lens (compact lenses)
- Day/night camera 36x
- Germanium window for thermal cameras
- LED illuminators
- Wiper
- Cold pack for low temperature down to -30°C (-22°F)
| GENERAL |
| Top mount (OTT) |
| Transmission through toothed belt |
| Slip-ring |
| Electronic limit switches |
| Simplified installation thanks to the connector and easy replacement on-site |
| Zero backlash |
| Configuration of telemetry protocol parameters through dip-switch for RS-485 |
| Zoom lens controller: polarity inversion and common wire |
| Functions: Autopan, Preset, Patrol |
| Maximum number of presets for protocol: 250 (MACRO) |
| 15 characters string for Area and Preset titling |
| Configuration through OSM |
| MECHANICAL |
| Constructed from aluminium and tecnopolymer |
| Epoxypolyester powder painting, RAL9002 colour |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -40° up to +90° |
| Horizontal speed (variable): from 0.02°/s up to 100°/s (from 0.02°/s up to 40°/s, with LED illuminators) |
| Tilt speed (variable): from 0.02°/s up to 40°/s (from 0.02°/s up to 30°/s, with LED illuminators) |
| Accuracy of preset positions: 0.02° |
| Internal usable area: See drawings |
| Cable glands: 3xM16 |
| Unit weight: 16.3kg (36lb) (16.8kg (37lb), with LED illuminators bracket) |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac, 0.4A, 50/60Hz |
| 24Vac, 4A (8A with LED illuminators), 50/60Hz |
| 120Vac, 0.8A, 50/60Hz |
| Power consumption: |
| 100W (150-190W max with LED illuminators in 24Vac) |
| 24W, P&T static, heating switched off |
| Version with integrated camera: |
| 26.5W, P&T static, heating switched off |
| Cables input section: |
| 0.75mm² (18AWG), 120Vac or 230Vac |
| 1.5mm² (16AWG), 24Vac |
| Cables signal section: from 0.14mm² (26AWG) up to 0.5mm² (20AWG) |
| Housing standard heater: 24Vac, 20W max |
| 4 alarm inputs: from 10Vdc up to 35Vdc (2 alarm inputs, with LED illuminators) |
| 2 dry contacts: 50Vdc max or 30Vac @ 1A (1 dry contact, with LED illuminators) |
| Video line: coaxial cable (1Vpp, 75 Ohm) |
| Camera power supply: 12Vdc (800mA) |
| Power supply to the lens: from 6Vdc up to 15Vdc (200mA max) |
| SERIAL COMMUNICATIONS |
| RS-232 interface for firmware update |
| 2-ports RS-485 for daisy chain configuration |
| Addressable through dip-switch up 255 units |
| Configuration of telemetry protocol parameters through dip-switch |
| Protocols supported: AMERICAN DYNAMICS, PANASONIC, PELCO D, VIDEOTEC MACRO, VISTA |
| AMERICAN DYNAMICS, PANASONIC, PELCO, VISTA are registered trademarks. |
| The product may be interfaced with devices not manufactured by VIDEOTEC. It is possible that the interface protocols have changed or are in a different configuration from earlier tested units by VIDEOTEC. VIDEOTEC recommends a test prior to installation. VIDEOTEC will not be liable for any installation costs or lost revenues in the event a compatibility problem will occur. |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature |
| With heater: from -20°C (-4°F) up to +60°C (140°F) |
| With reinforced heater: from -30°C (-22°F ) up to +60°C (140°F) |
| Wind resistance (without LED illuminators): |
| Operational: up to 160km/h |
| Stationary: up to 210km/h |
| Surge immunity: up to 2kV line to line, up to 4kV line to earth (Class 4) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class A), EN610000-6-3, FCC Part 15 (Class B) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Photobiological safety (CE): EN62471 (LED illuminators) |
| IP protection degree (EN60529): |
| IP66 |
| Salty fog resistance: EN50130-5, EN60068-2-52 |
| UL certification: cULus Listed, TYPE 4X ) (not for thermal cameras version) |
| EAC certification |
